Installation Procedure
- Connect the electrical connector.
Vehicle Dynamic Sensor (2) - Install
- Vehicle Dynamic Sensor Fastener (1) - Install and tighten [2x] 9N.m (80 lb in)

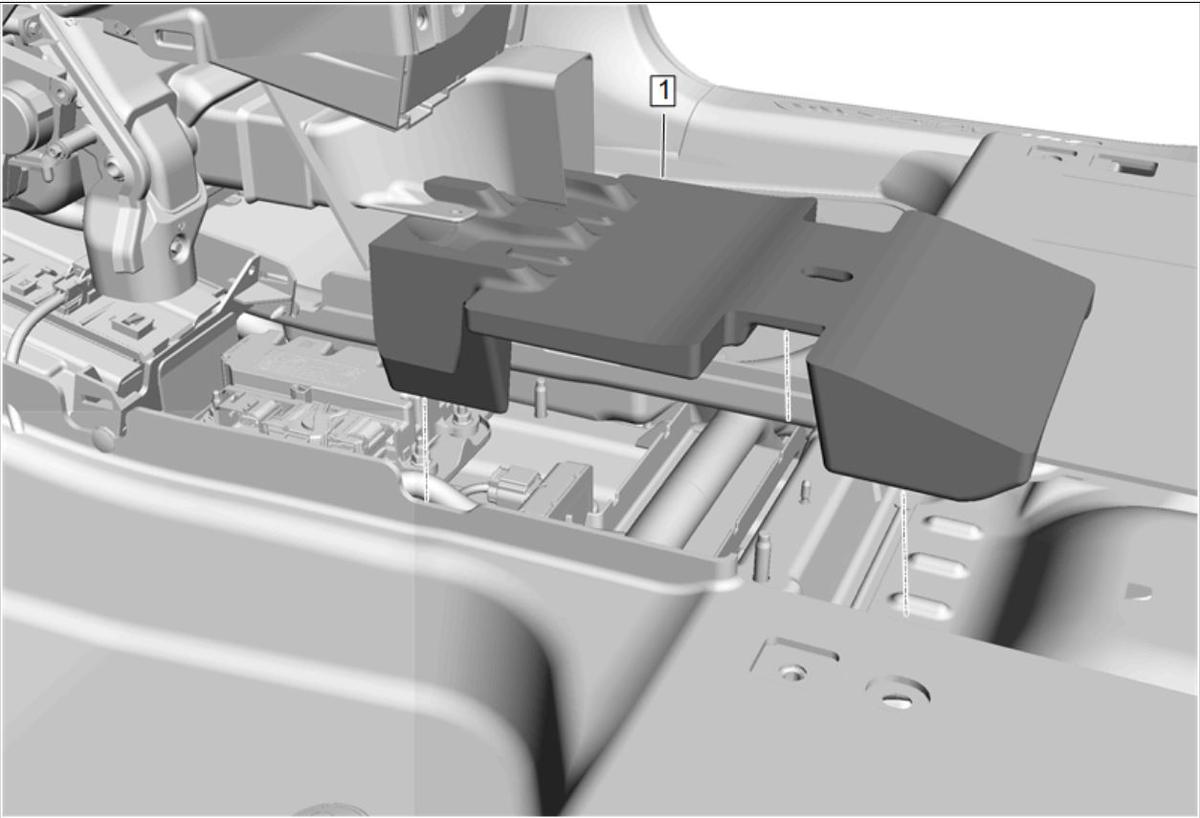

Install the front floor panel tunnel panel insulator (1).

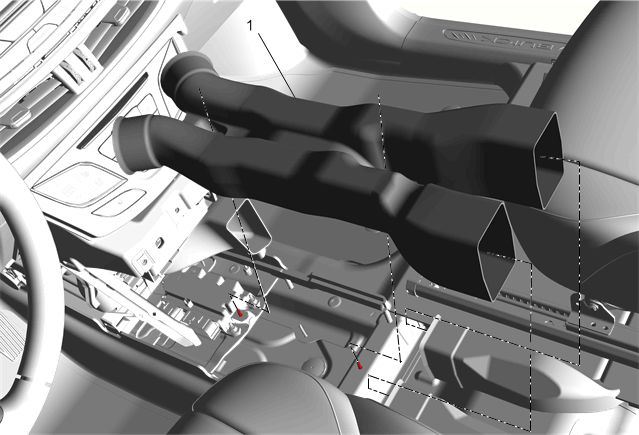

Install the center floor rear air outlet rear duct (1). Floor Rear Air Outlet Rear Duct Replacement (Center)
- Perform the vehicle yaw sensor learn. Vehicle Yaw Sensor Learn
Refer to Fastener Caution
