2019 Buick Encore BaseFACTORY OEM SERVICE PROCEDURE

Communication Interface Module Bracket Replacement (Buick)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

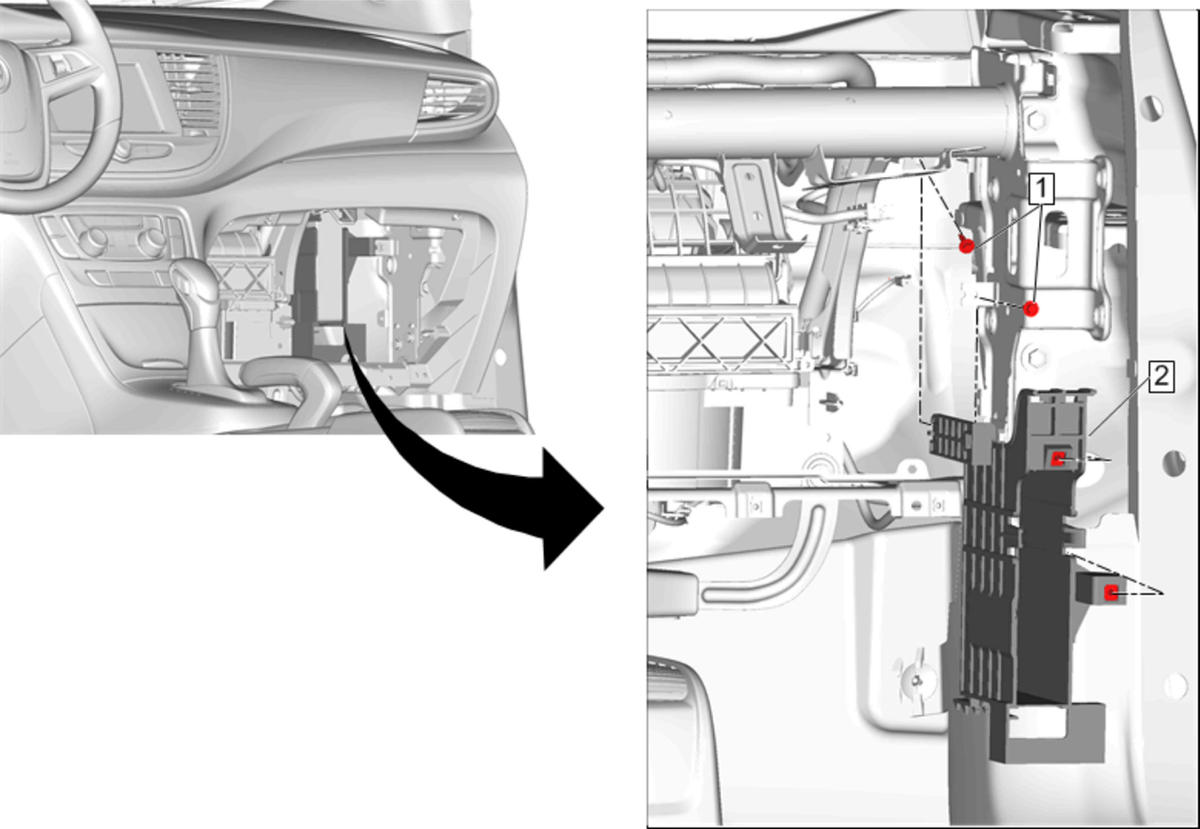

Callout

Component Name

Preliminary Procedure
Serial Data Gateway Bracket Replacement (Buick)

Communication Interface Module Bracket Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
The top of the bracket has 2 locking tabs on an arm that goes above the instrument panel tie bar, lift the arm up and out of the locking holes to release the bracket.
