Forward Range Radar Sensor Replacement

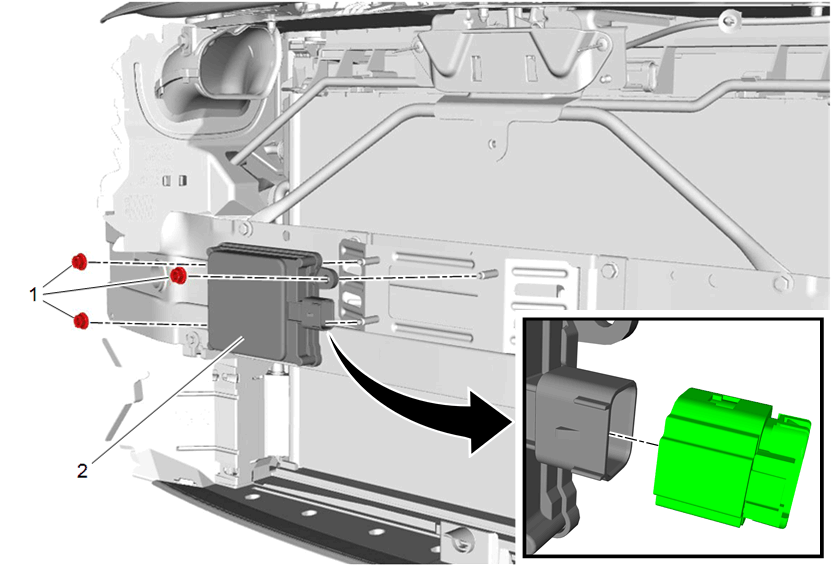

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement . |
|
| 1 | Forward Range Radar Sensor Nut [3x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Forward Range Radar Sensor
CAUTION:
Do NOT apply paint to the Forward Range Radar Module. Always cover the module before applying paint or other coatings in the area around the module. Failure to protect the module may result in reduced functionality of the module. Procedure
|
