2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE
Engine Components - Rear (LGX)
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

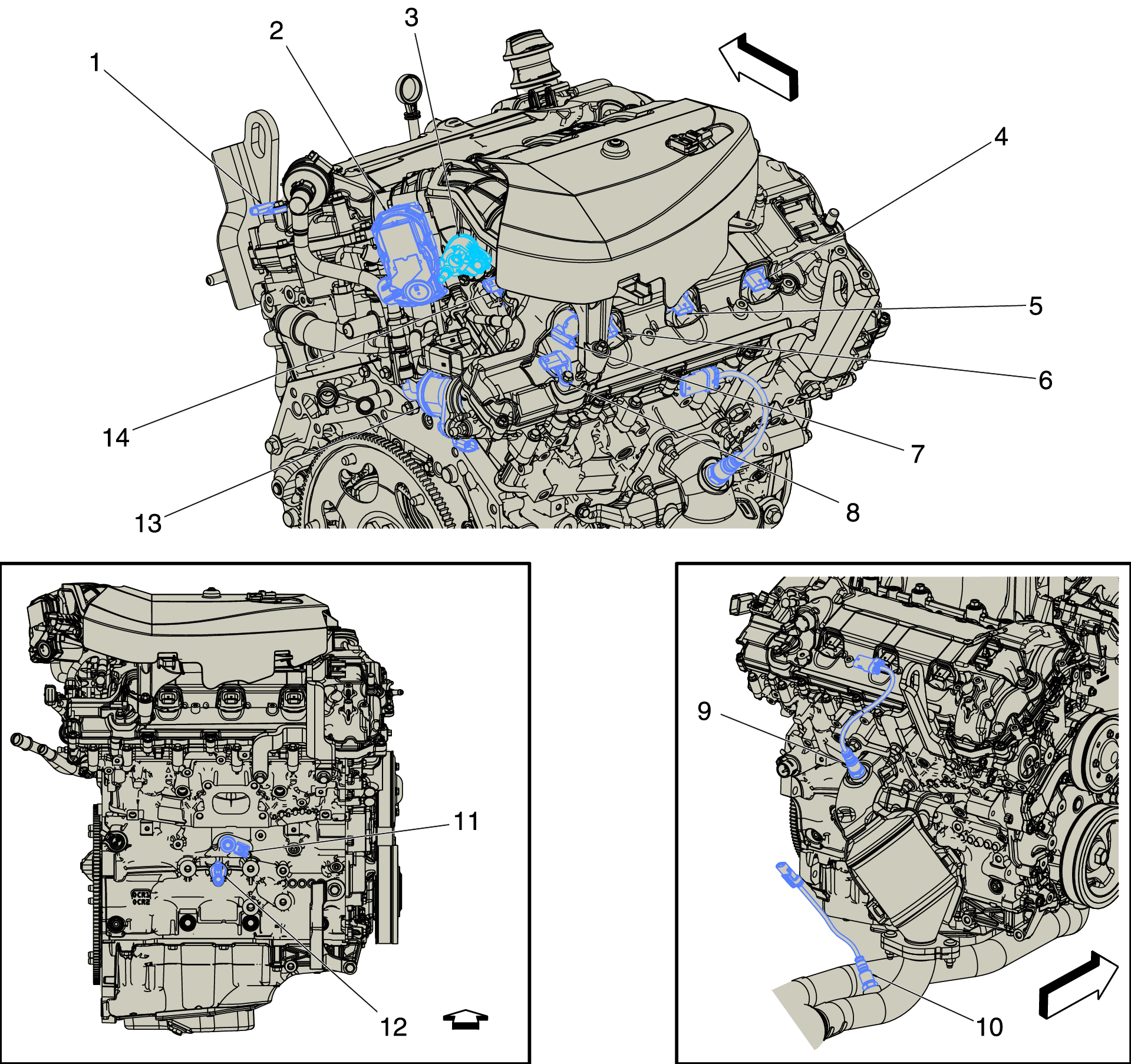

Engine Components - Rear (LGX)
| Component Name | Callout |
|---|---|
| B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX) B23C Camshaft Position Sensor - Bank 2 Exhaust | 1 |
| Q38 Throttle Body Q38 Throttle Body | 2 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 3 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LGX) | 4 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LGX) | 5 |
| T8E Ignition Coil 5 (LGX) T8E Ignition Coil 5 | 6 |
| Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 | 7 |
| B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust | 8 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 | 9 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 | 10 |
| B68A Knock Sensor 1 B68A Knock Sensor 1 | 11 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGX) | 12 |
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump | 13 |
| B23B Camshaft Position Sensor - Bank 1 Intake (LGX) B23B Camshaft Position Sensor - Bank 1 Intake | 14 |
