2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE
Front Fascia Components
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

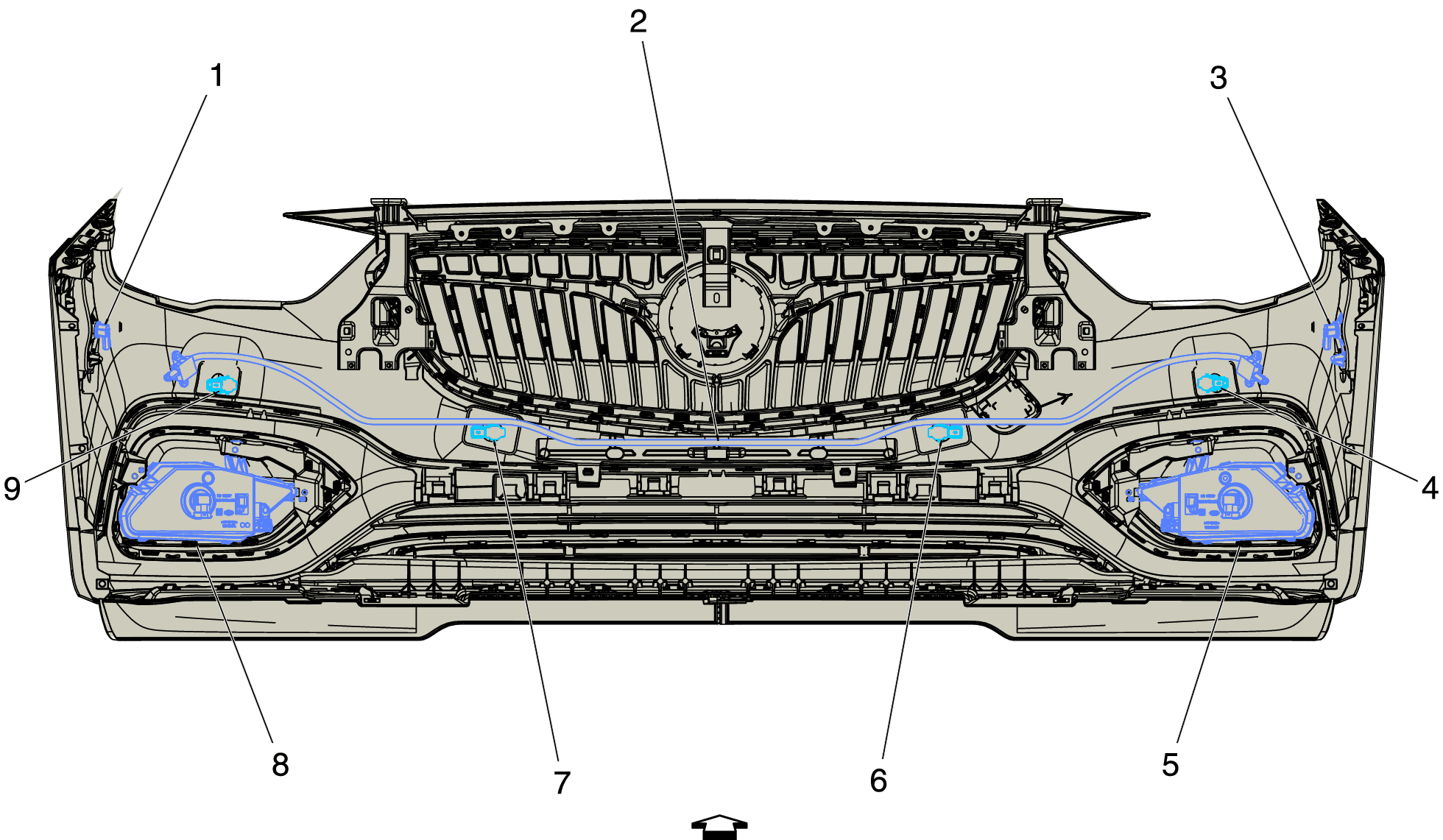

Front Fascia Components
| Component Name | Callout |
|---|---|
| E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front | 1 |
| B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T) , or B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T) | 2 |
| E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front | 3 |
| B306D Parking Assist Sensor - Front Right Outer (UD5/UD7) B306D Parking Assist Sensor - Front Right Outer | 4 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U) | 5 |
| B306C Parking Assist Sensor - Front Right Middle (UD5/UD7) B306C Parking Assist Sensor - Front Right Middle | 6 |
| B306B Parking Assist Sensor - Front Left Middle (UD5/UD7) B306B Parking Assist Sensor - Front Left Middle | 7 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U) | 8 |
| B306A Parking Assist Sensor - Front Left Outer (UD5/UD7) B306A Parking Assist Sensor - Front Left Outer (UD5/UD7) | 9 |
