2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE
Headlamp Control Module Replacement (T4L with T95 and UVG)
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

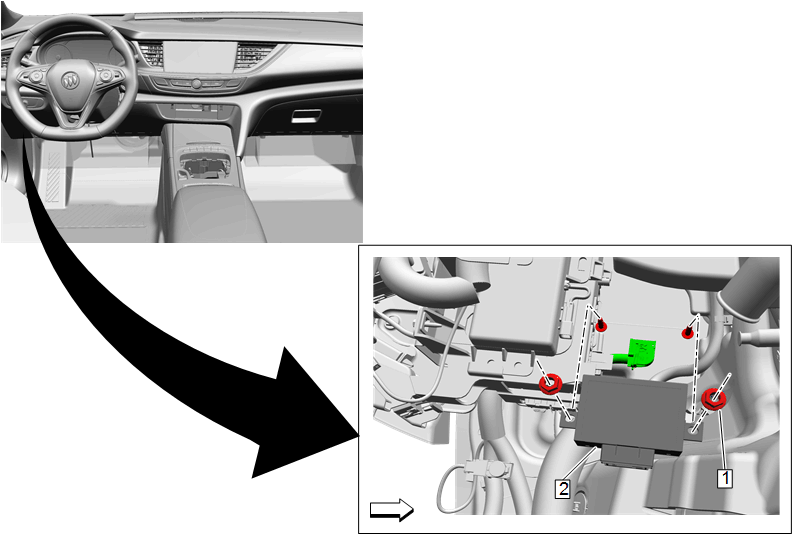

| Callout | Component Name |
|---|---|
| 1 | Headlamp Control Module Nut [2x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Headlamp Control Module Procedure
|
