2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE
Fuel Pump Power Control Module Replacement (FWD)
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

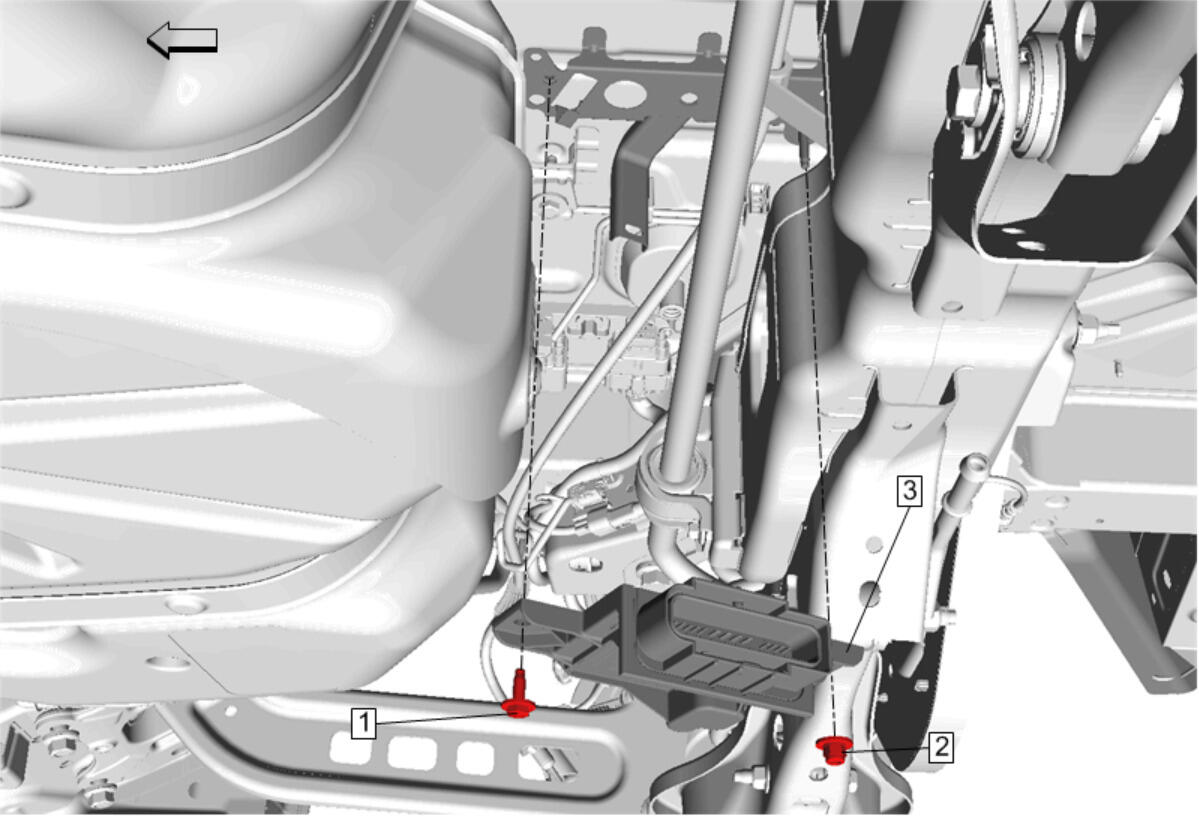

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Fuel Pump Power Control Module Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Fuel Pump Power Control Module Nut Tighten 9 N.m (80 lb in) |
| 3 | Fuel Pump Power Control Module Procedure
|
