Courtesy of GENERAL MOTORS COMPANY

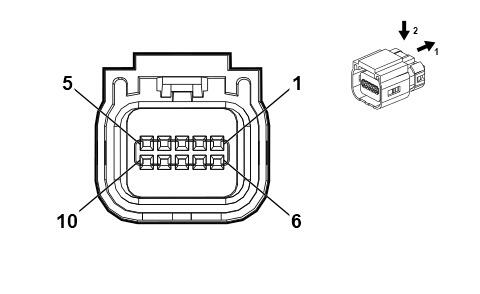

Connector Part Information

Harness Type: Engine
OEM Connector: 13569289
Service Connector: 19178082
Description: 10-Way F 0.64 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575742	J-35616-64B (LT BU)	J-38125-215A	SAIT-A03T-M064	Yazaki 14	P	P

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I	-
3	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I	-
4	0.5	BU/YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
5	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I	-
6	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
7	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I	-
8	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I	-
9	0.5	BU/YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
10	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I	-
