2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE
B75C Multifunction Intake Air Sensor
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

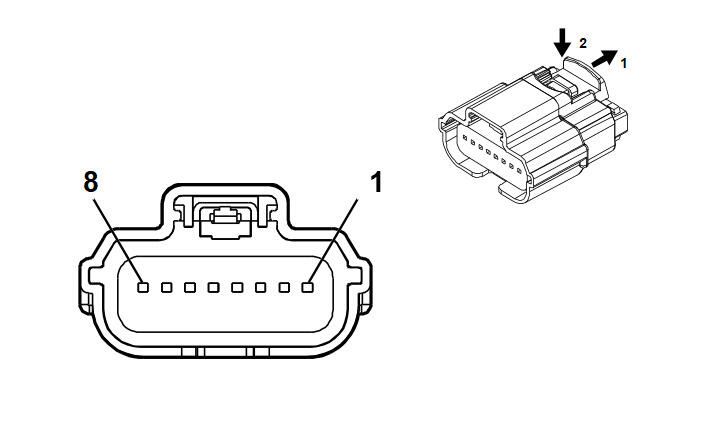

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | WH/BU | 6289 | Intake Air Temperature Sensor Signal | I | - |
| 2 | 0.5 0.5 |
WH/RD GY/RD |
3201 3053 |
Throttle Inlet Absolute Pressure Sensor 5V Reference Turbocharger Intake Pressure Sensor High Reference Bank 1 |
I I |
LGX LTG |
| 3 | 0.5 0.5 |
BK/VT BK/YE |
2760 548 |
Intake Air Temperature Sensor Low Reference Engine Control Sensors Low Reference 1 |
I I |
LGX LTG |
| 4 | 0.5 0.5 |
YE/WH YE |
3200 3054 |
Throttle Inlet Absolute Pressure Sensor Signal Turbocharger Intake Pressure Sensor Signal Bank 1 |
I I |
LGX LTG |
| 5 | 0.5 | VT/BU | 5294 | Powertrain Main Relay Fused Supply 5 | I | - |
| 6 | 0.5 | GN/WH | 492 | Mass Air Flow Sensor Signal | I | - |
| 7 | 0.75 | BK/WH | 151 | Ground 1 | I | - |
| 8 | 0.5 | BN/GY | 4008 | Humidity Sensor Signal | I | - |
