2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE

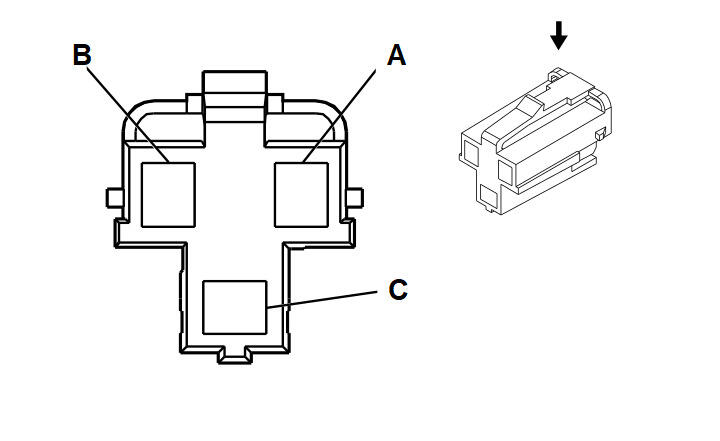

X80C Accessory Power Receptacle - Cargo (KC8)
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-4A (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| A | 2.5 | VT | 1701 | Retained Accessory Power Ignition | I | - |
| B | - | - | - | Not Occupied | - | - |
| C | 2.5 | BK | 2350 | Ground | I | - |
