2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE

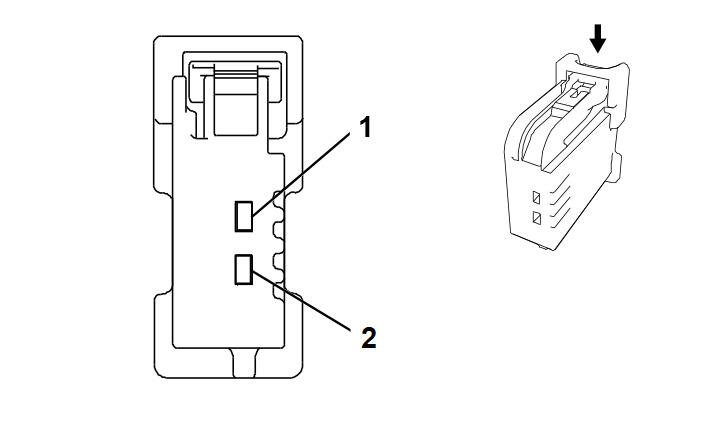

E8S Rear Compartment Courtesy Lamp
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-14 (GN) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | GN/GY | 737 | Rear Compartment Lid Lamp Control | I | - |
| 2 | 0.75 | BK | 2550 | Ground | I | - |
