2018 Buick Regal Base
Electronic Brake Control Module Replacement
2018 Buick Regal BaseSECTION Electronic Brake Control Module Replacement

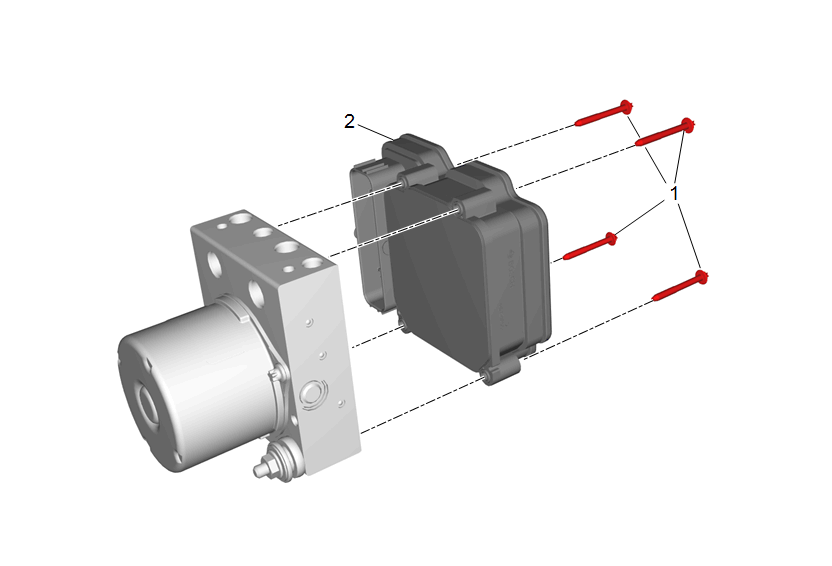

| Callout | Component Name |
|---|---|
| Preliminary Procedure Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (2.0L LTG) or Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (3.6L LGX) |
|
| 1 | Electronic Brake Control Module Bolt[4x]
CAUTION:
Tighten 3N.m (27 lb in) |
| 2 | Electronic Brake Control Module Procedure
|
