2017 Buick LaCrosse BaseFACTORY OEM SERVICE PROCEDURE

Remote Control Door Lock Receiver Replacement

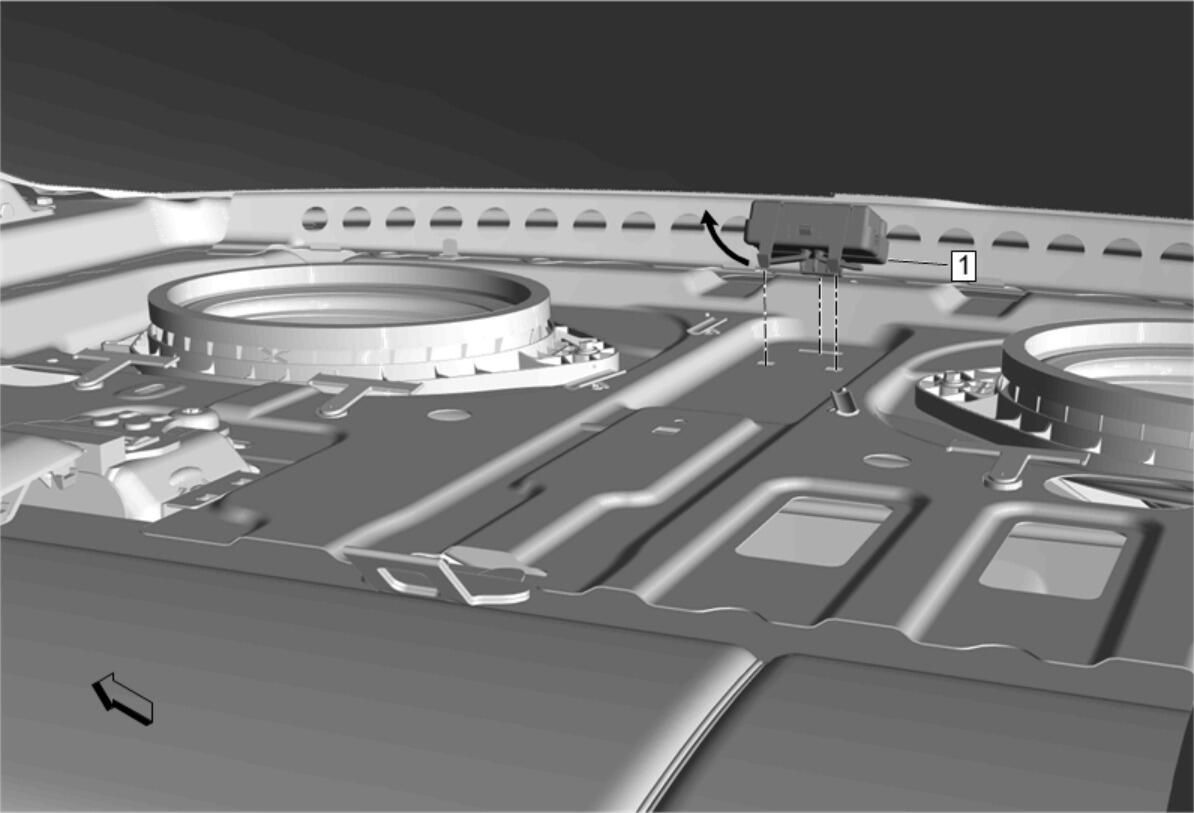

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3)

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Lift the front side of the receiver upward and rearward to remove from the rear window panel.
