2017 Buick Envision BaseFACTORY OEM SERVICE PROCEDURE

Vehicle Dynamic Sensor Replacement

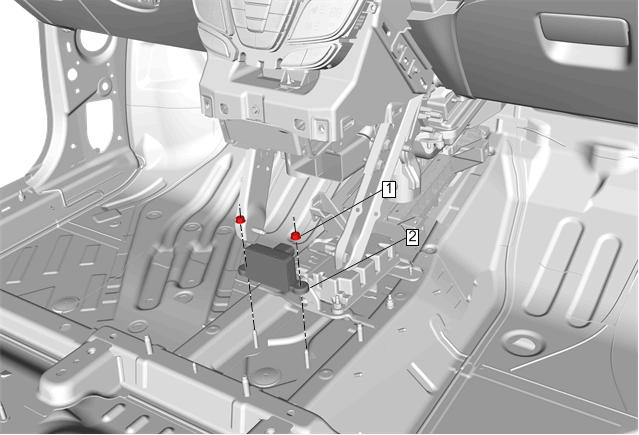

Fig 1: Vehicle Dynamic Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove Transmission Control. Refer to Transmission Control Replacement
Remove Transmission Control Bracket. Refer to Transmission Control Bracket Replacement
Remove Front Floor Console Rear Air Duct. Refer to Front Floor Console Rear Air Duct Replacement (Front)Front Floor Console Rear Air Duct Replacement (Rear)Front Floor Console Rear Air Duct Replacement (CJ4 Rear)
Remove the body wiring harness retainer from the sensor bolt.

Vehicle Dynamic Sensor Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Vehicle Dynamic Sensor

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and setup information, if required.
Perform the Vehicle Yaw Sensor Learn
