Parking Assist Control Module Replacement

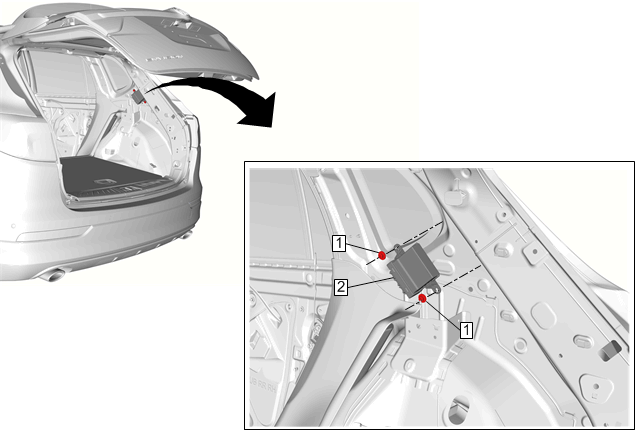

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Quarter Window Trim Finish Panel. Refer to Quarter Window Trim Finish Panel Replacement |
|
| 1 | Rear Object Alarm Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Rear Object Alarm Control Module Procedure
|
