2017 Buick Cascada BaseFACTORY OEM SERVICE PROCEDURE
Communication Interface Module Bracket Replacement

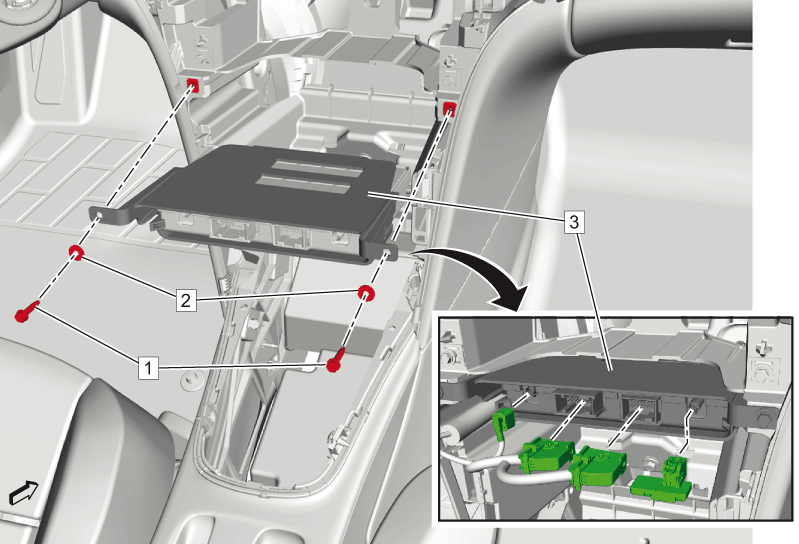

| Callout | Component Name |
|---|---|
| Preliminary Procedure Radio Control Assembly Replacement |
|
| 1 | Communication Interface Module Bracket Bolt[2x]
CAUTION:
Refer to Fastener Caution . Tighten 2, 5 N.m (22 lb in) |
| 2 | Communication Interface Module Bracket Washer [2x] |
| 3 | Communication Interface Module Bracket Procedure
|
