Forward Range Radar Module Replacement

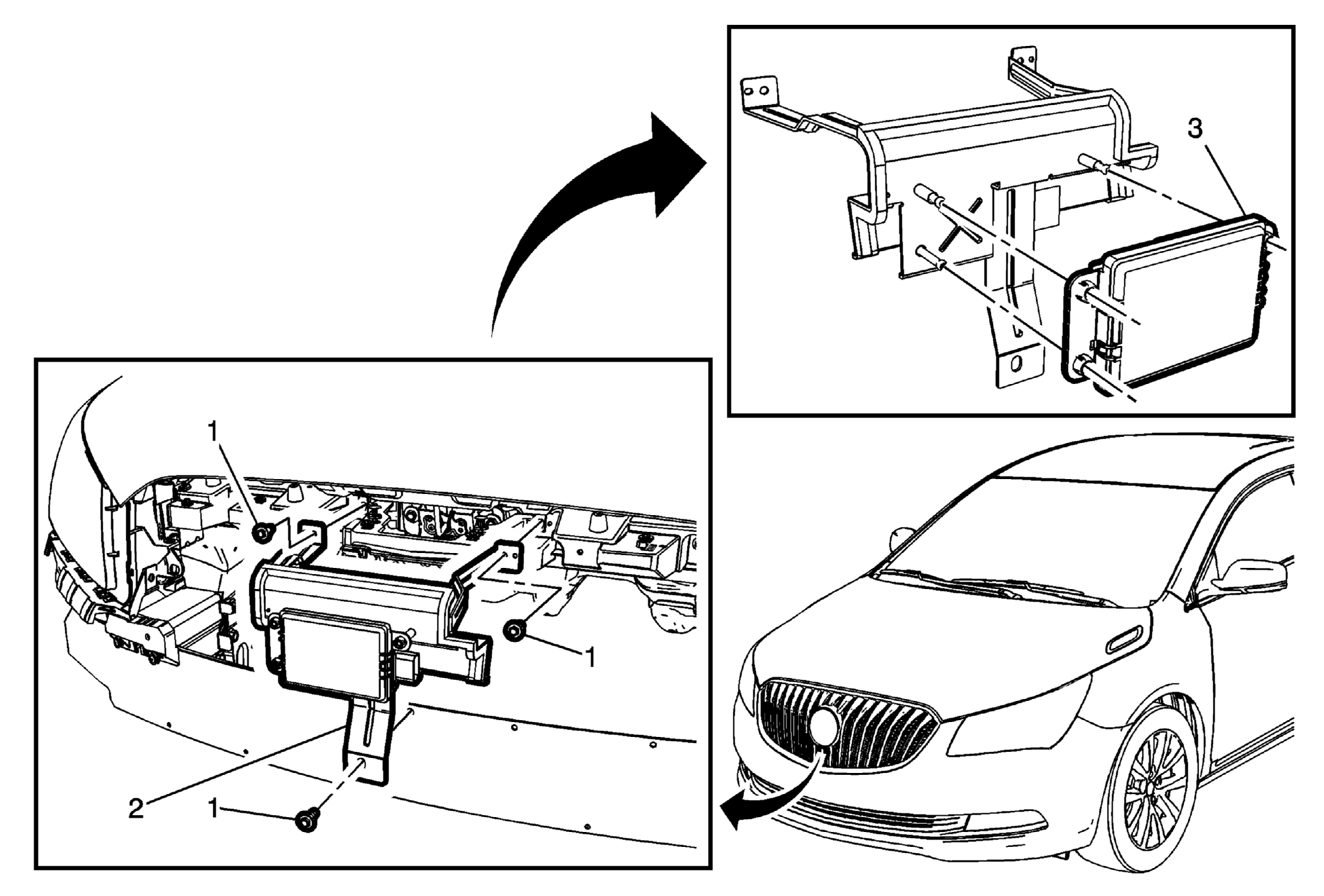

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Forward Range Radar Module Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Forward Range Radar Module Bracket |
| 3 | Forward Range Radar Module Procedure
|
