2016 Buick EnvisionFACTORY OEM SERVICE PROCEDURE

Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

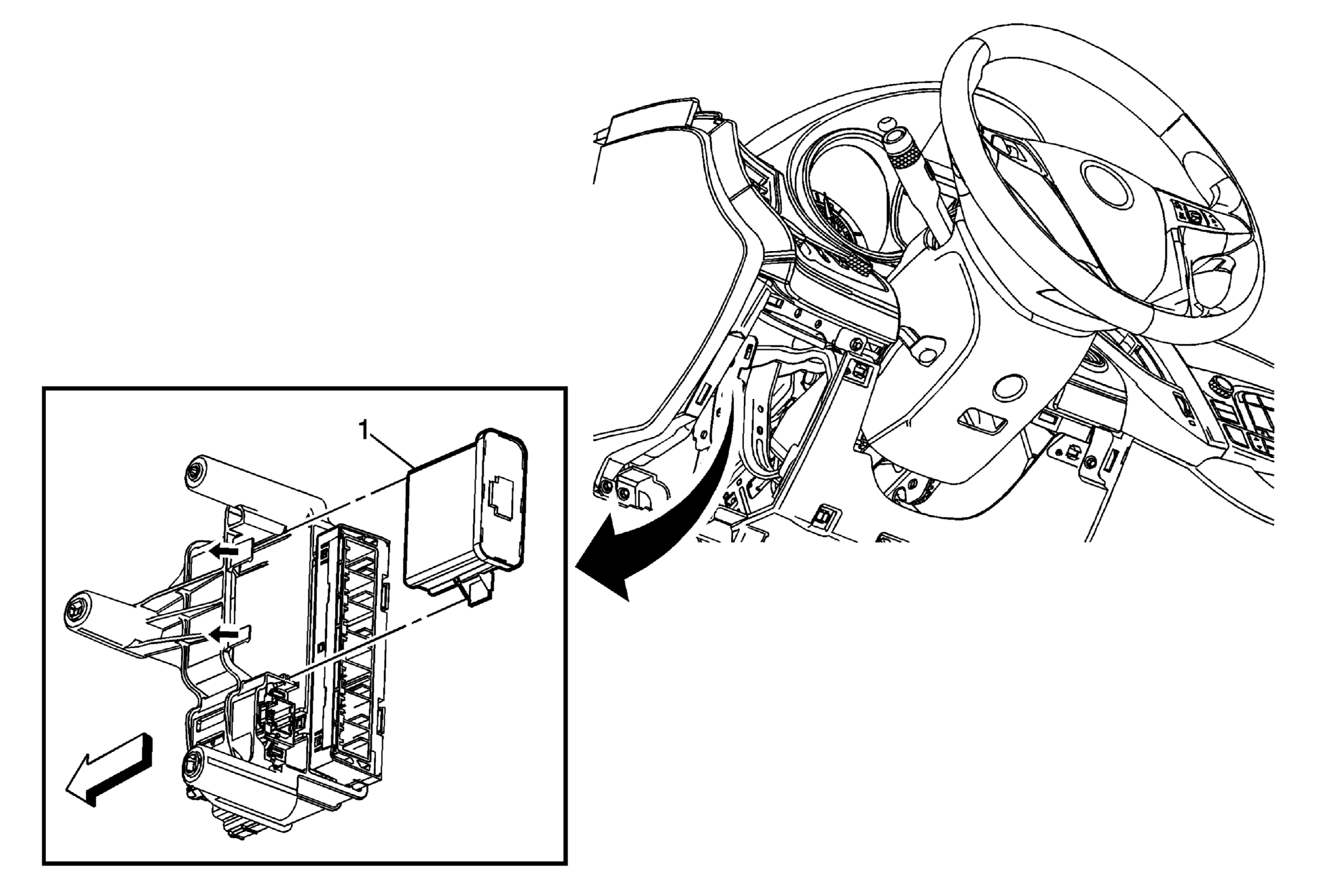

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the instrument panel wiring harness junction block. Refer to Instrument Panel Wiring Harness Junction Block Replacement .

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Unsnap to release the module from the bracket.
Refer to Control Module References for programming and set up procedures.
