2016 Buick EnvisionFACTORY OEM SERVICE PROCEDURE

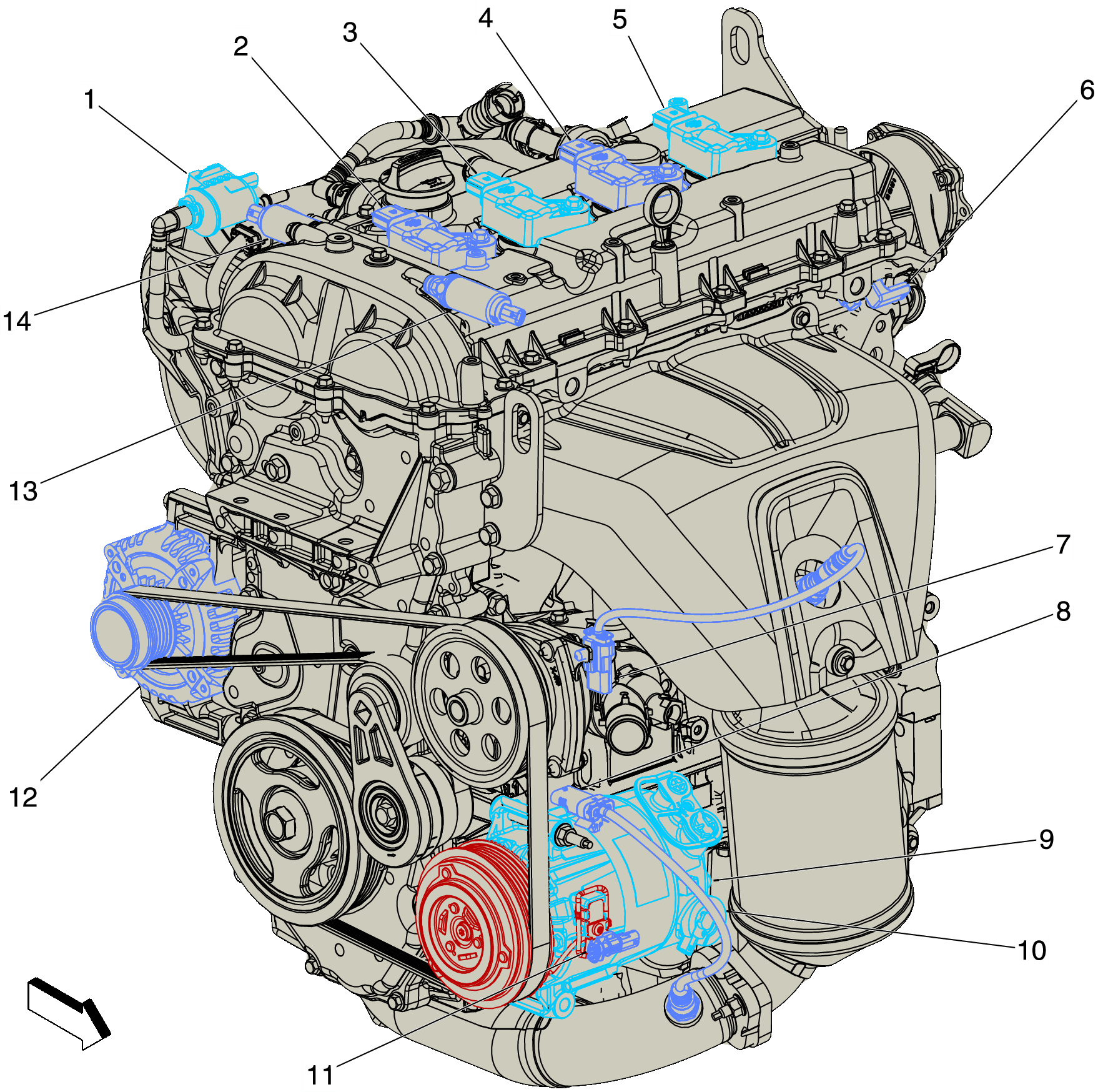

Right Front of Engine Components (LCV)
Right Front of Engine Components (LCV)
| Items |
|---|
| 1. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 2. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 3. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 4. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 5. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 6. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 7. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 8. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 9. G1 A/C Compressor |
| 10. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 11. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 12. G13 Generator G13 Generator X1 |
| 13. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 14. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
