2016 Buick Encore Base, AWD
Vehicle Stability Control System Switch Replacement
2016 Buick Encore Base, AWDSECTION Vehicle Stability Control System Switch Replacement

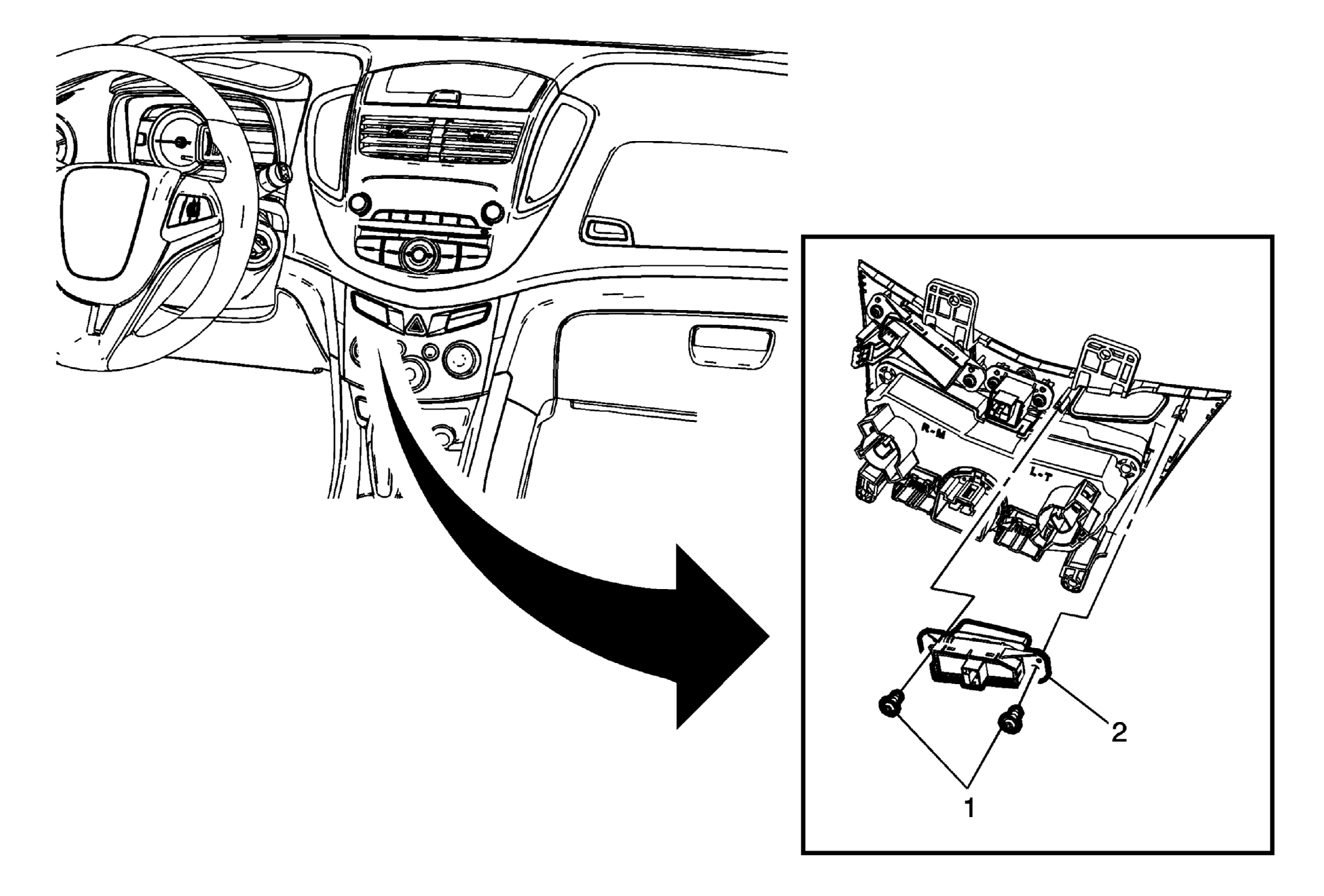

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement . |
|
| 1 | Vehicle Stability Control System Switch Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in) |
| 2 | Vehicle Stability Control System Switch |
