2016 Buick Cascada BaseFACTORY OEM SERVICE PROCEDURE

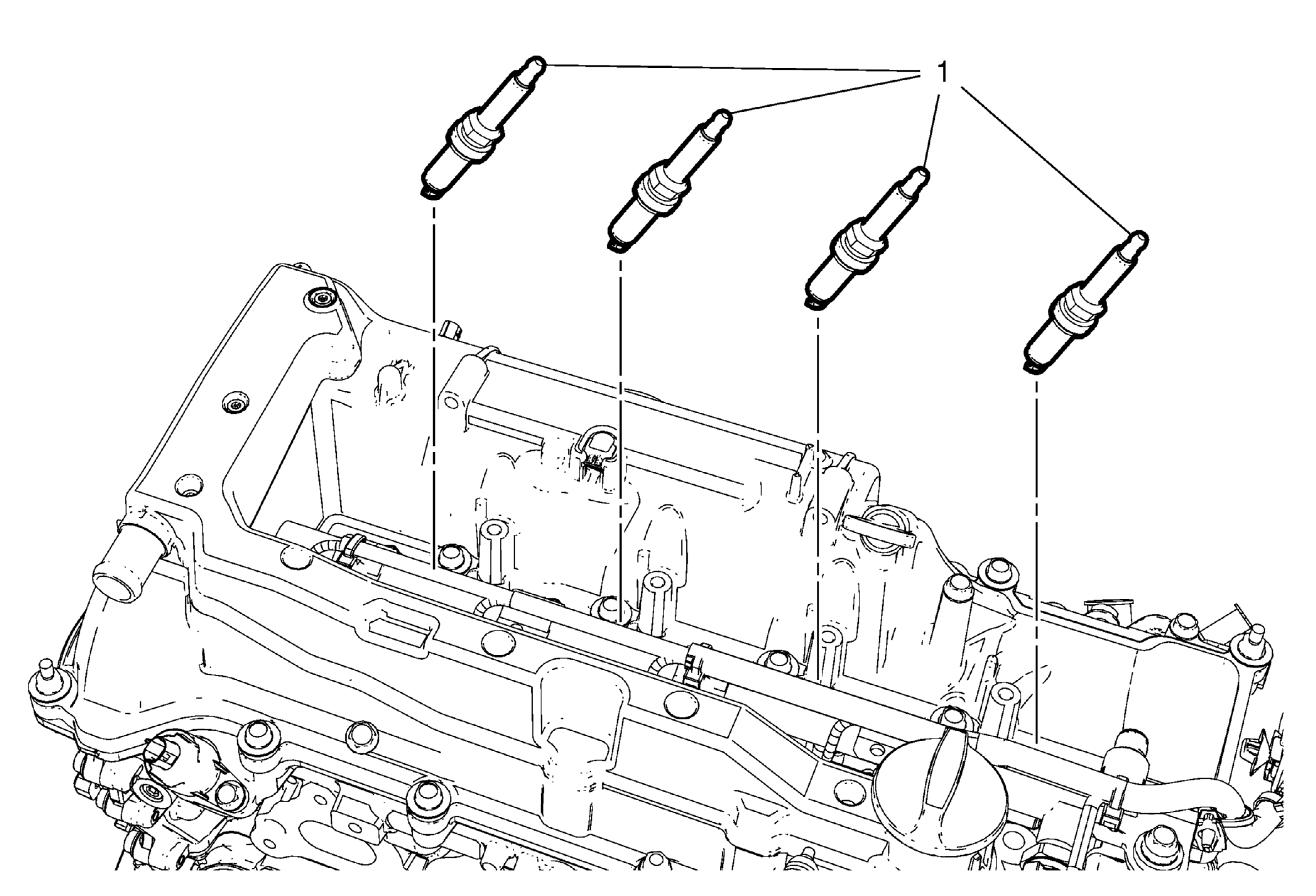

Spark Plug Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coil. Refer to Ignition Coil Replacement . |
|
| 1 | Spark Plug
CAUTION:
Refer to Fastener Caution . Tighten 17 N.m (13 lb ft) Special Tools EN-51149 Spark Plug Remover / Installer For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Removal and Installation) . |
