2015 Buick Verano BaseFACTORY OEM SERVICE PROCEDURE

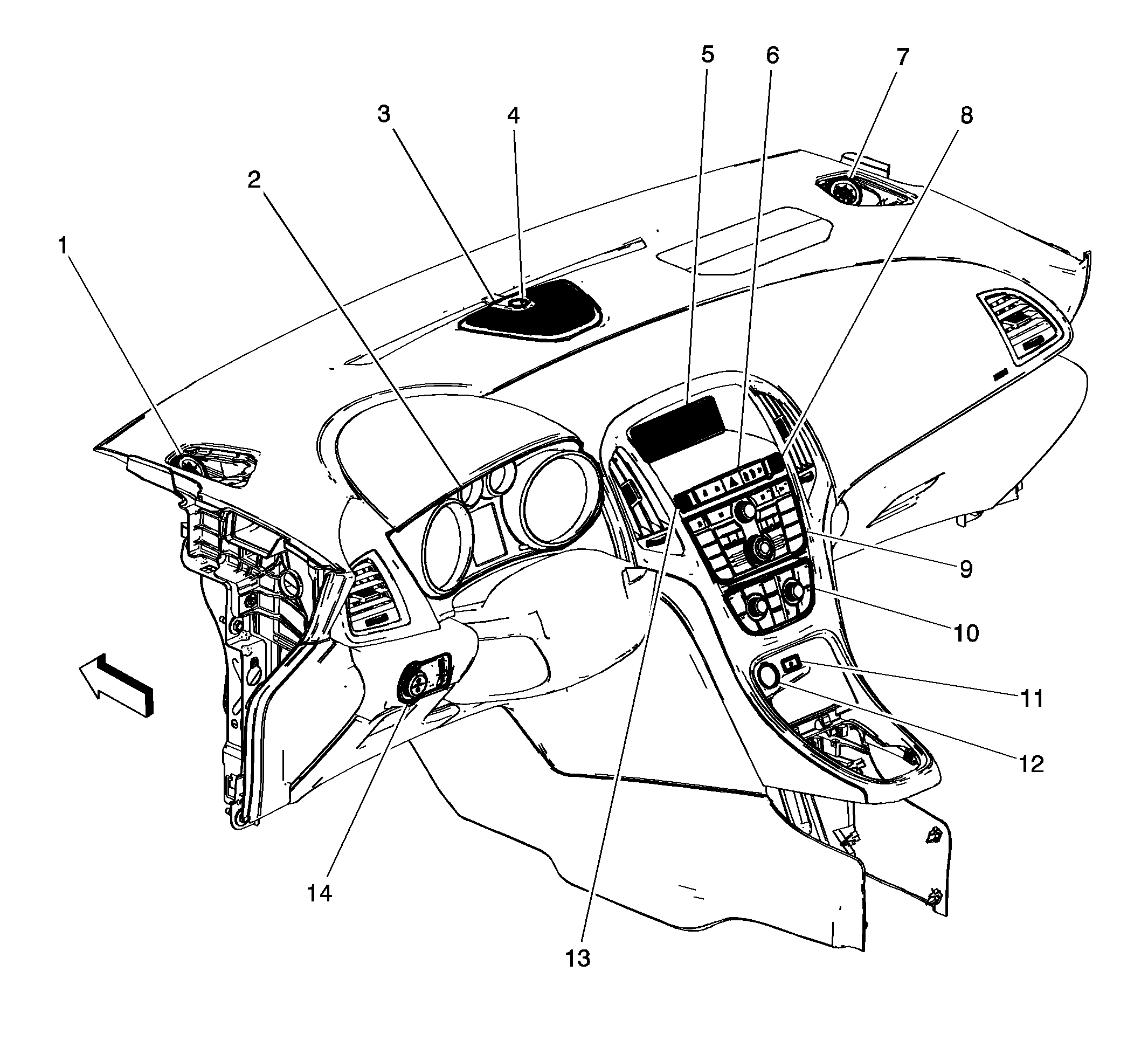

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1: P19H Speaker - Left Front Tweeter (UQA or UZ6) P19H Speaker - Left Front Tweeter |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel |
| 4: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 5: P17 Info Display Module (UAG) P17 Info Display Module X1 (UAG)P17 Info Display Module X1 (UDY)P17 Info Display Module X2 (UDY) |
| 6: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 7: P19V Speaker - Right Front Tweeter (UQA or UZ6) P19V Speaker - Right Front Tweeter |
| 8: S58 Rear Compartment Lid Unlatch Switch S58 Rear Compartment Lid Unlatch Switch |
| 9: A22 Radio Controls (UAG or UDY) A22 Radio Controls (UAG)A22 Radio Controls |
| 10: A26 HVAC Controls (C67, CJ2 or UVD) A26 HVAC Controls |
| 11: X83 Auxiliary Audio Input (KTA and TTX) X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2 |
| 12: E32 Cigarette Lighter Receptacle (KC5) E32 Cigarette Lighter Receptacle |
| 13: S38 Ignition Mode Switch (ATH and BTM) S38 Ignition Mode Switch |
| 14: S30 Headlamp Switch S30 Headlamp Switch |
