2015 Buick Enclave ConvenienceFACTORY OEM SERVICE PROCEDURE
S84D Door Switch Panel Control Module - Driver X7

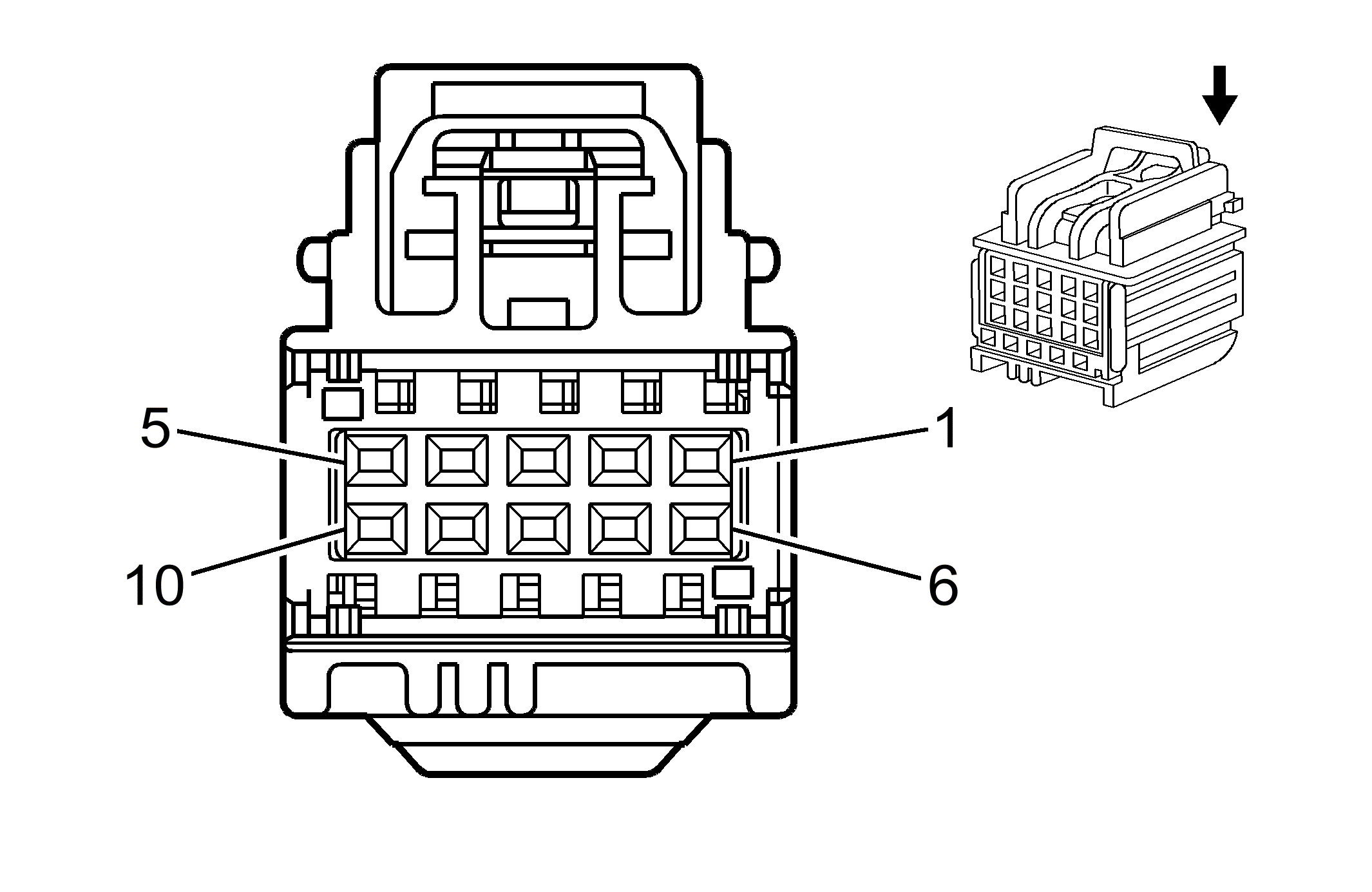

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-64B (LT BU) | Not Available | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE | 6802 | Left Extend/Fold Mirror Motor Extend Control | I | DNP |
| 2 | 0.35 | L-BU | 6803 | Left Extend Mirror Motor Retract/Unfold Control | I | DNP |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | D-GN | 784 | Left Mirror Vertical Position Sensor Signal | I | DNP or DS3 with A45 |
| 5 | 0.35 | GY | 786 | Left Mirror Horizontal Position Sensor Signal | I | DNP or DS3 with A45 |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | D-BU | 672 | Left Outside Rear View Mirror Position Sensor 5 Volt Reference | I | DNP or DS3 with A45 |
| 8 | 0.35 | PK | 5853 | Driver Side Object Detection LED Signal (1) | I | UFT |
| 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 | BN | 673 | Left Outside Rear View Mirror Position Sensor Low Reference | I | DNP or DS3 with A45 |
