2015 Buick Enclave ConvenienceFACTORY OEM SERVICE PROCEDURE
K40 Seat Memory Control Module X7

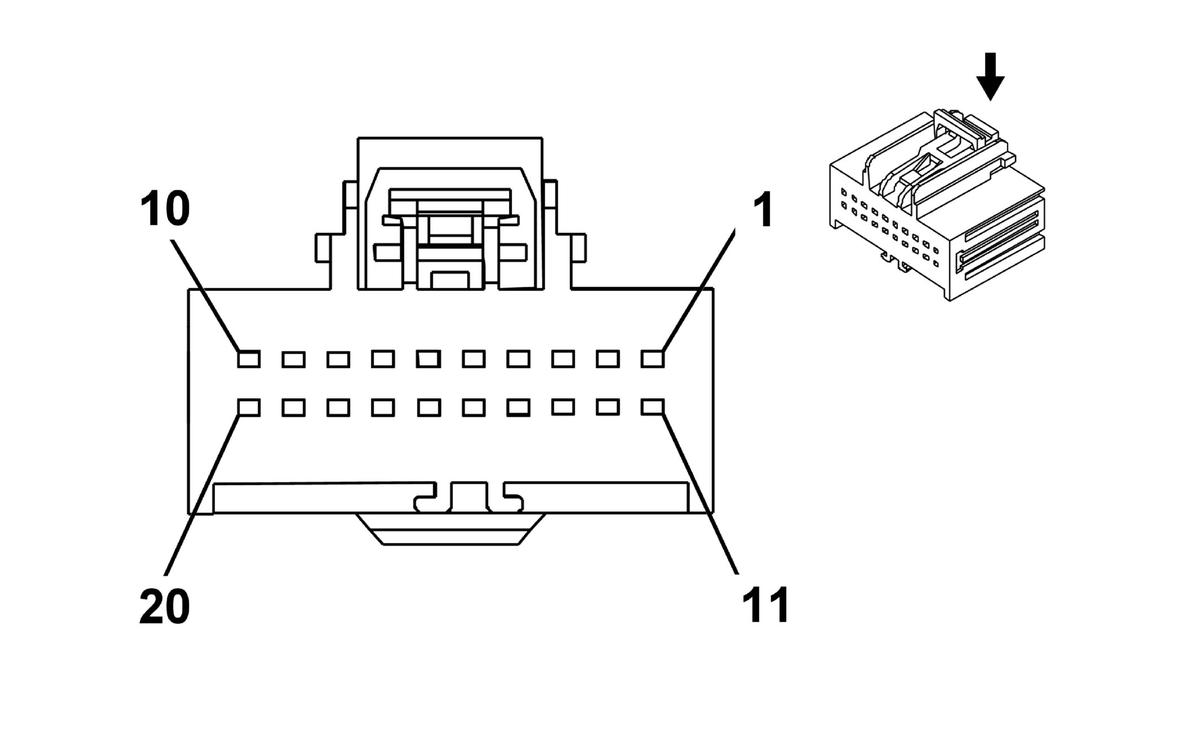

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | Not Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | D-GN | 1518 | Power Seat Front Vertical Up Switch Signal | I | AG3 |
| 8 | 0.35 | YE | 1519 | Power Seat Rear Vertical Up Switch Signal | I | AG3 |
| 9 | 0.35 | - | 1522 | Power Seat Horizontal Forward Switch Signal | I | AG3 |
| 10 | 0.35 | GY/BK | 1269 | Power Seat Recline Forward Switch Signal | I | AG3 |
| 11 - 15 | - | - | - | Not Occupied | - | - |
| 16 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | A45 |
| 17 | 0.35 | D-BU | 1520 | Power Seat Front Vertical Down Switch Signal | I | AG3 |
| 18 | 0.35 | L-BU | 1521 | Power Seat Rear Vertical Down Switch Signal | I | AG3 |
| 19 | 0.35 | L-GN | 1523 | Power Seat Horizontal Rearward Switch Signal | I | AG3 |
| 20 | 0.35 | D-GN/WH | 1270 | Power Seat Recline Rearward Switch Signal | I | AG3 |
