2015 Buick Enclave ConvenienceFACTORY OEM SERVICE PROCEDURE
K32 Steering Wheel Heating Control Module

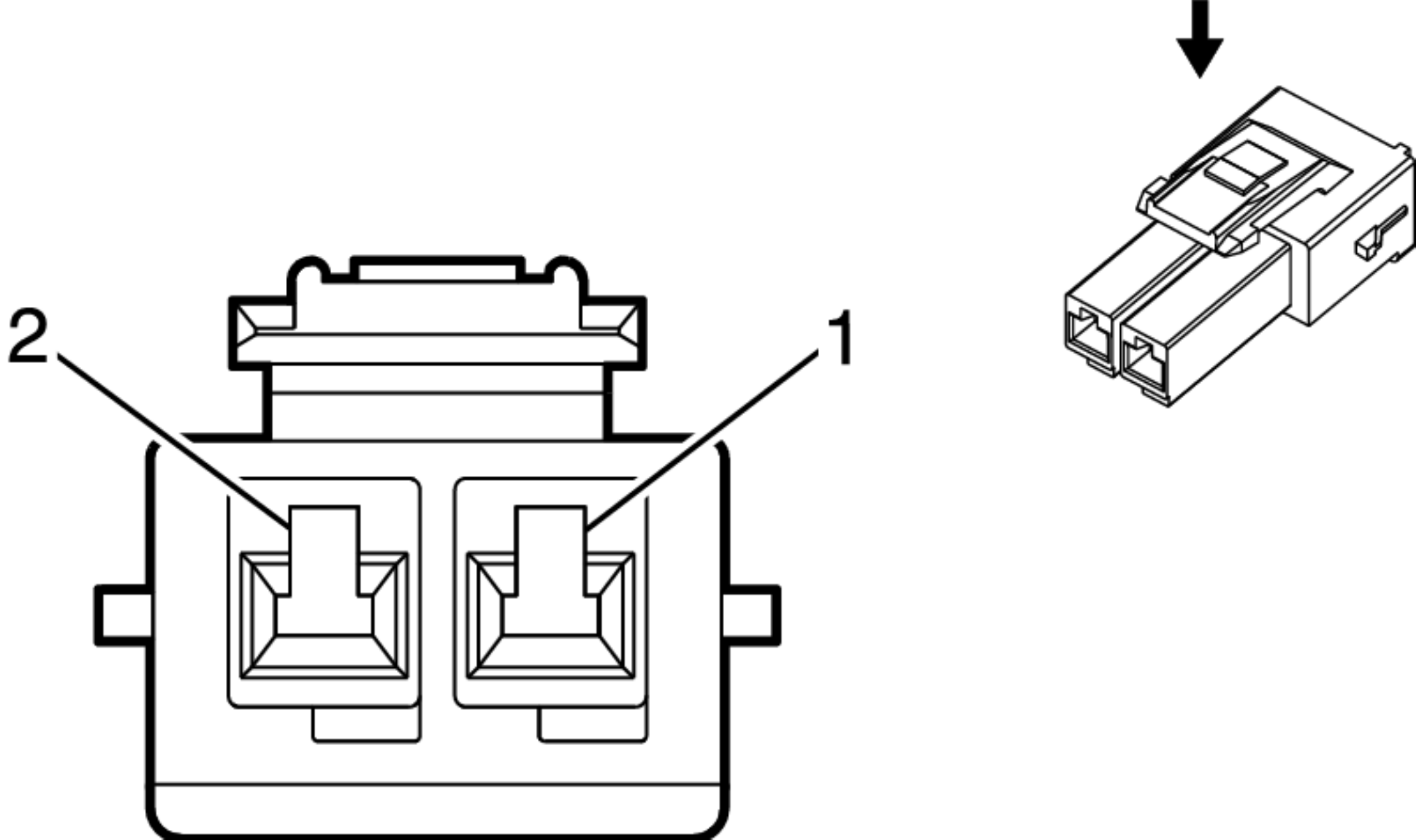

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-65B (LT BU) | Not Available | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | OG | 5883 | Heated Steering Wheel Switch Signal | I | UVD |
| 2 | 0.35 | PK | 5884 | Heated Steering Wheel Switch LED Control | I | UVD |
