2015 Buick Enclave ConvenienceFACTORY OEM SERVICE PROCEDURE

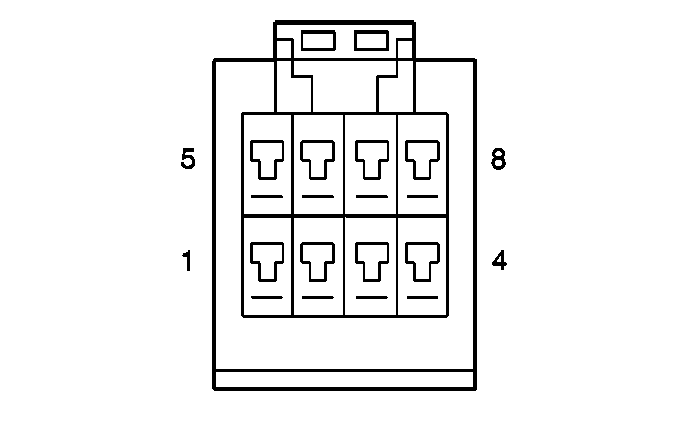

K78 Head-Up Display Module
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-16 (LT GN) | Not Available | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | UV6 |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.35 | BN | 622 | Head Up Display Switch Signal | I | UV6 |
| 4 | 0.35 | BK/WH | 1551 | Signal Ground | I | UV6 |
| 5 | 0.35 | L-BU/BK | 5812 | Head Up Display Dimming Signal | I | UV6 |
| 6 | 0.5 | RD/WH | 4540 | Battery Positive Voltage | I | UV6 |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.35 | L-GN/BK | 5699 | Head Up Display Switch Low Reference | I | UV6 |
