2015 Buick Enclave ConvenienceFACTORY OEM SERVICE PROCEDURE

Electronic Navigation Antenna Replacement

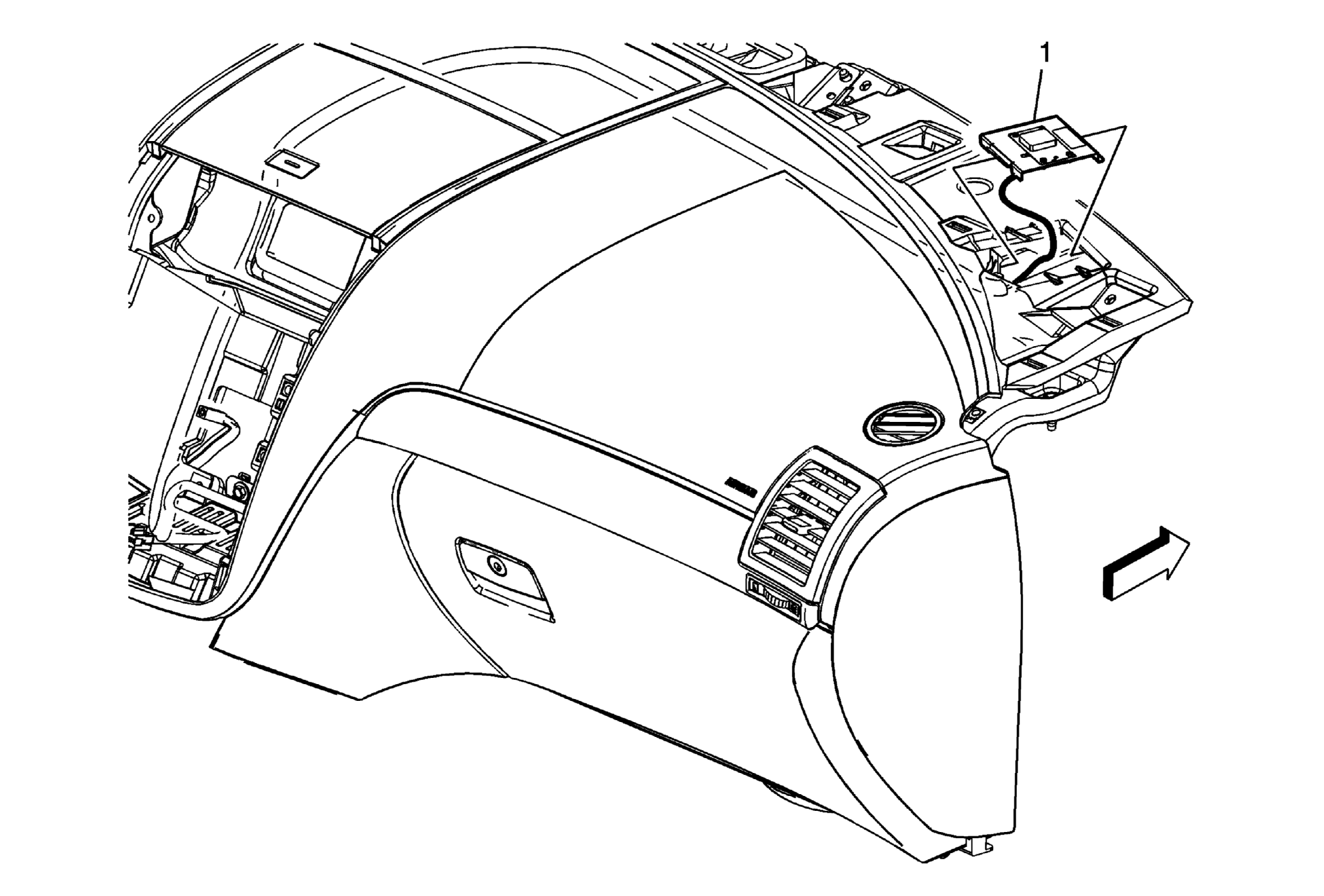

Fig 1: View Of Global Positioning System (GPS) Antenna
GM1849846Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6)Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6)Instrument Panel Trim Pad Replacement (Enclave)Instrument Panel Trim Pad Replacement (Traverse) .
  2. Remove the radio. Refer to Radio Replacement .
1 Navigation Antenna Assembly

Procedure

  1. Disconnect the navigation antenna from the radio.
  2. Pull the tab back to release the navigation antenna from the I/P upper trim pad.
  3. Note the location and routing of the gps antenna prior to removing to ensure proper reinstallation.
