Communication Interface Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

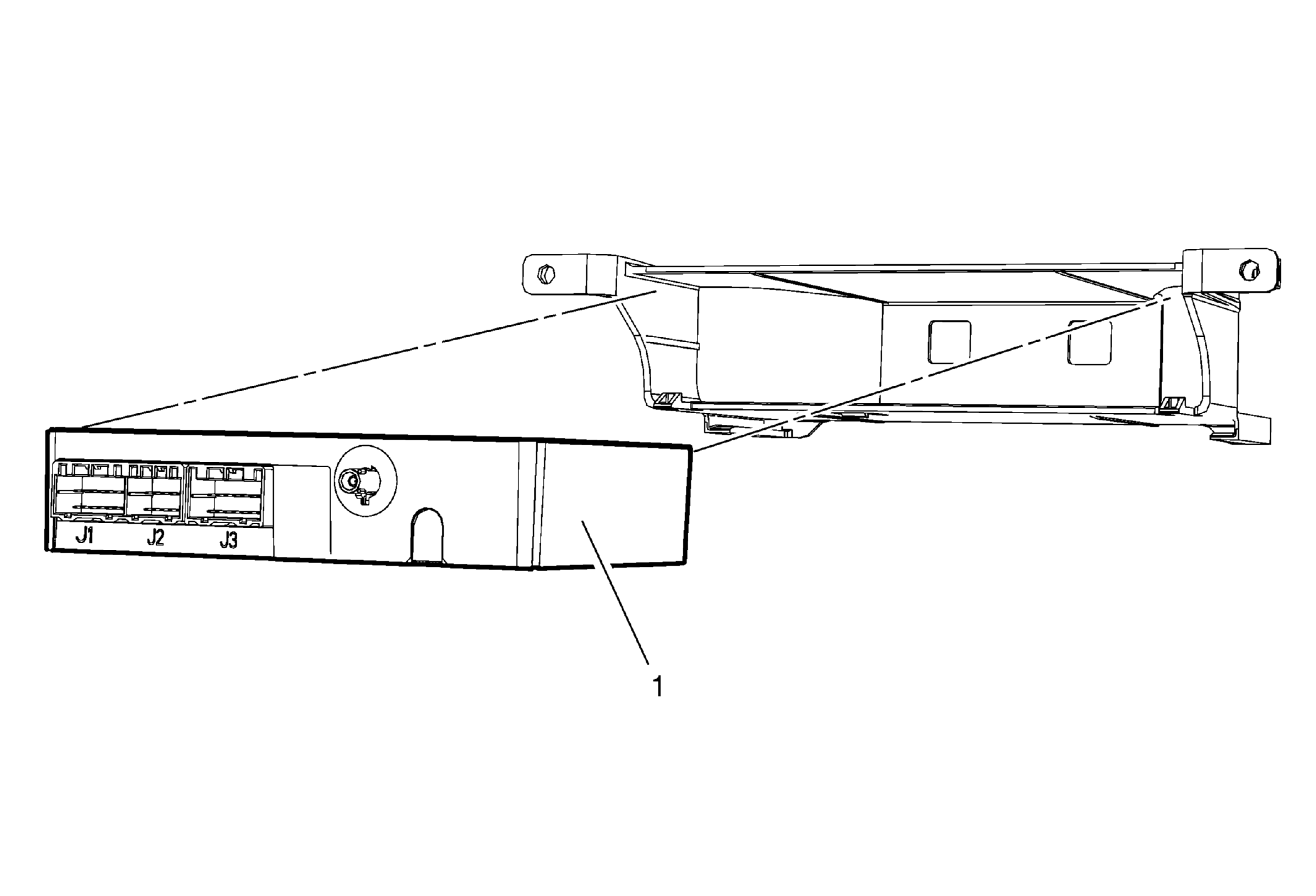

Fig 1: Communication Interface Module
GM2743369Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Replacement

Callout Component Name
Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1 Communication Interface Module

Procedure

  1. Release the bracket tabs and slide the module out of bracket.
  2. Disconnect the electrical connections.
  3. If replacing the communication interface module be sure to transfer bluetooth antenna, if equipped.
  4. For programming and set up procedures, refer to Control Module References .
