2014 Buick Verano BaseFACTORY OEM SERVICE PROCEDURE

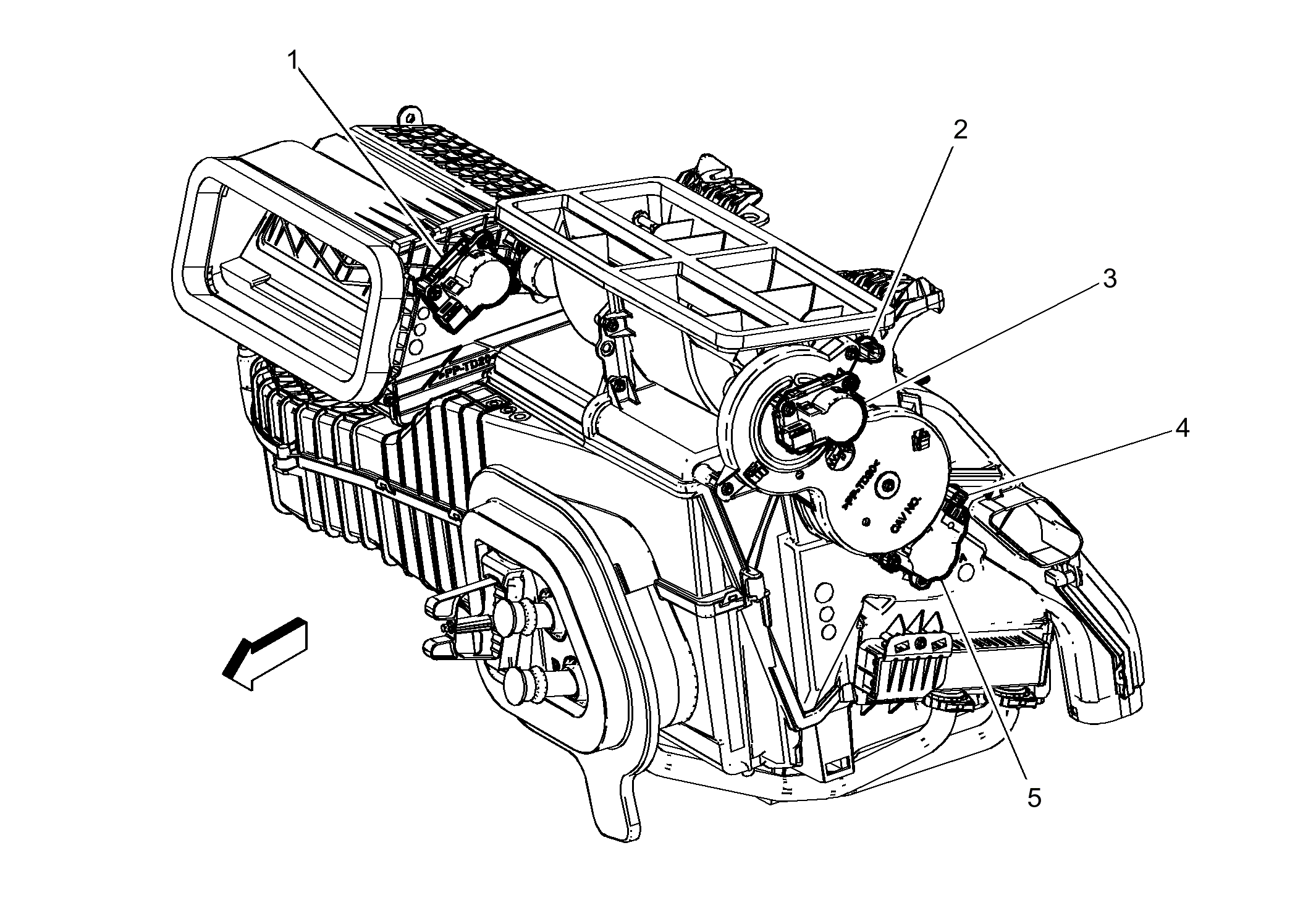

Left HVAC Components

Items
1: M4 Air Inlet Door Actuator (C67 or CJ2)
2: B7H Air Temperature Sensor - Duct Left Upper (CJ2)
3: M37B Mode Door Actuator - Auxiliary (C67 or CJ2)
4: B7D Air Temperature Sensor - Duct Left Lower (CJ2)
5: M6B Air Temperature Door Actuator - Auxiliary (C67 or CJ2)

Fig 1: Left HVAC Components

Courtesy of GENERAL MOTORS COMPANY
