Steering Column Components

Items
1: S71 Steering Column Tilt and Telescope Switch ((N38)) S71 Steering Column Tilt and Telescope Switch (N38)
2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch X1 S78 Turn Signal/Multifunction Switch X2
3: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 X85 Steering Wheel Air Bag Coil X2 X85 Steering Wheel Air Bag Coil X3
4: K64 Content Theft Deterrent Control Module K64 Content Theft Deterrent Control Module
5: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
6: M93 Key Capture Solenoid Actuator M93 Key Capture Solenoid Actuator
7: S39 Ignition Switch S39 Ignition Switch
8: M68 Steering Column Tilt Motor ((N38)) M68 Steering Column Tilt Motor (N38)
9: M65 Steering Column Telescope Motor ((N38)) M65 Steering Column Telescope Motor (N38)
11: B102 Steering Column Tilt Position Sensor ((N38)) B102 Steering Column Tilt Position Sensor (N38)

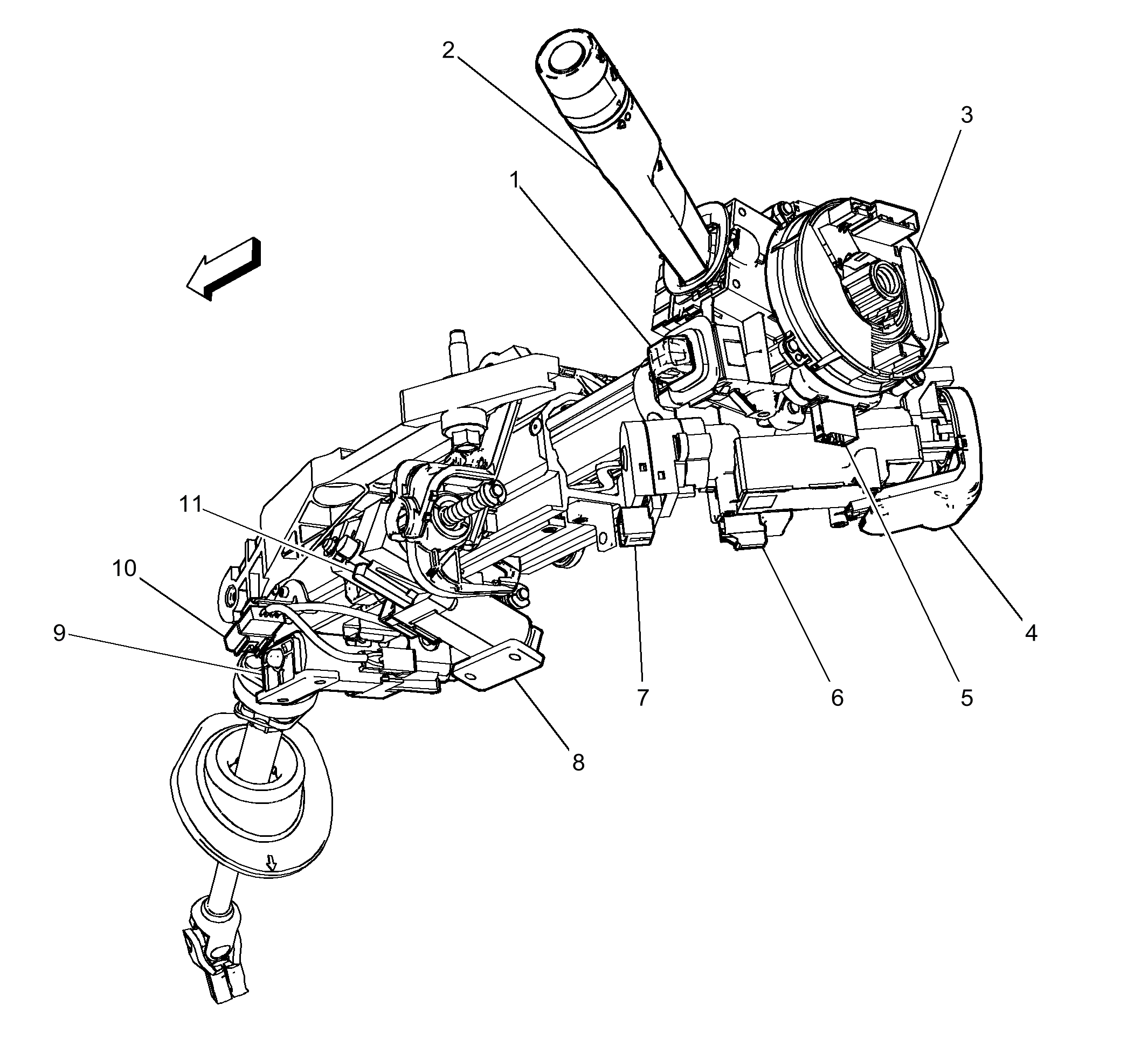

Fig 1: View Of Steering Column Components

Courtesy of GENERAL MOTORS COMPANY
