HOMESERVICE MANUALSBUICK2014ENCLAVE CONVENIENCEREPAIR AND DIAGNOSIS (SINGLE PAGE)QUICK LOOKUPSELECTRICAL COMPONENT LOCATIONSELECTRICAL COMPONENT LOCATOR - INSTRUMENT PANEL/CENTER CONSOLE COMPONENT VIEWSINSTRUMENT PANEL/CENTER CONSOLE COMPONENT VIEWSINSTRUMENT PANEL COMPONENTS
2014 Buick Enclave Convenience

Instrument Panel Components

2014 Buick Enclave ConvenienceSECTION Instrument Panel Components
Instrument Panel Components

Items
1:  S30 Headlamp Switch S30 Headlamp Switch
2:  P16 Instrument Cluster P16 Instrument Cluster
3:  A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3 (U42)A11 Radio X4
4:  B10 Ambient Light Sensor ((C67)) B10 Ambient Light Sensor (C67)
5:  P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disable Indicator
6:  K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2 (C67)K33 HVAC Control Module X2 (CJ2)K33 HVAC Control Module X3K33 HVAC Control Module X4
8:  S32P Seat Heating Switch - Passenger ((KA1 or SPO Accessory)) S32P Seat Heating Switch - Passenger (KA1)
9:  S31P Seat Heating and Cooling Switch - Passenger ((KB6)) S31P Seat Heating and Cooling Switch - Passenger (KB6)
10:  X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
11:  S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
12:  S31D Seat Heating and Cooling Switch - Driver ((KB6)) S31D Seat Heating and Cooling Switch - Driver (KB6)
13:  S32D Seat Heating Switch - Driver ((KA1 or KB6 or SPO Accessory)) S32D Seat Heating Switch - Driver (KA1)
14:  S26 Hazard Warning Switch S26 Hazard Warning Switch
15:  S16 Driver Information Center Switch ((UH9)) S16 Driver Information Center Switch (UH9)
16:  S27 Head-Up Display Switch ((UV6)) S27 Head-Up Display Switch (UV6)

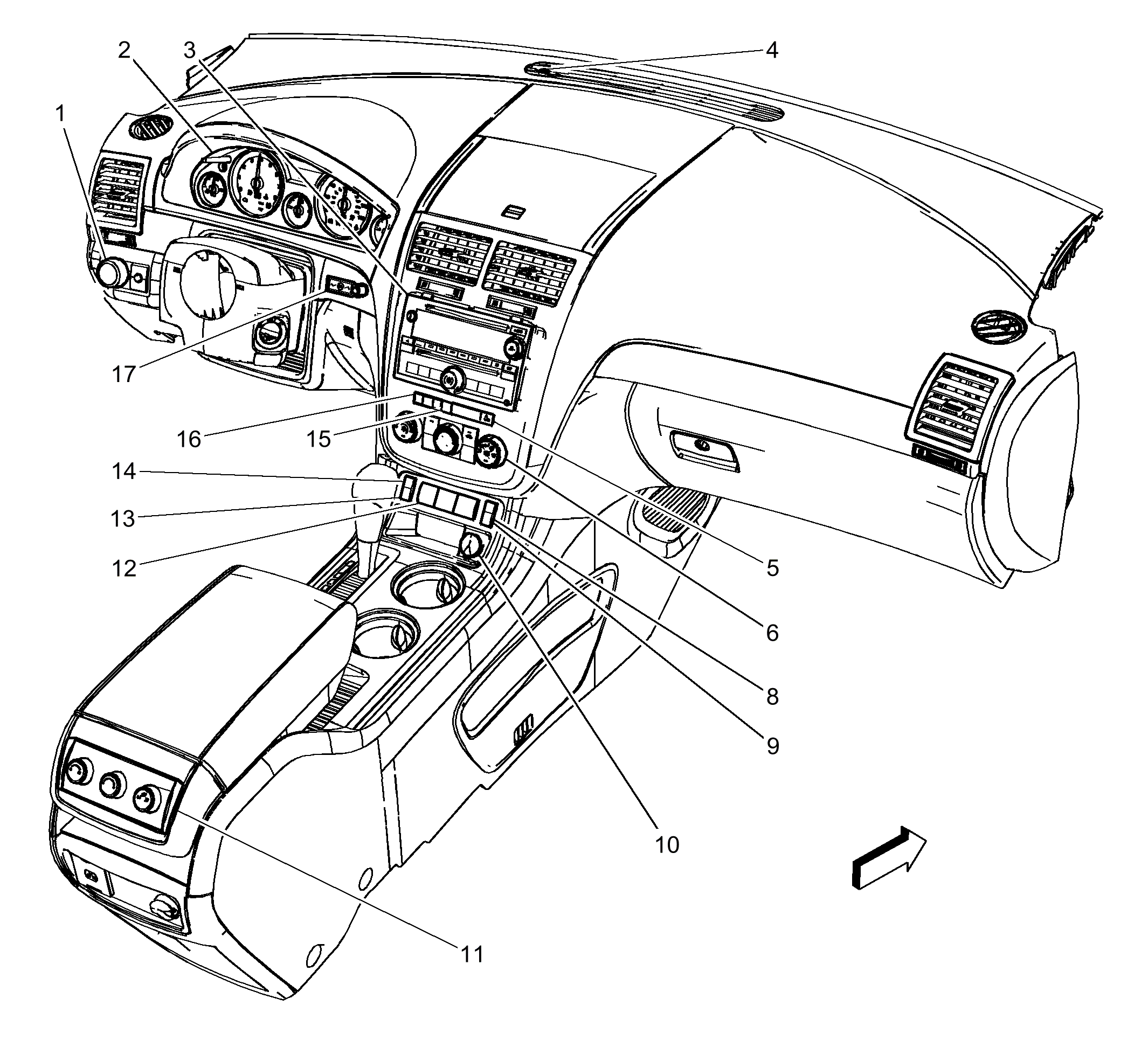

Fig 1: Locating Instrument Panel Components
GM2491194Courtesy of GENERAL MOTORS COMPANY
