2012 Buick VeranoFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Loosen the fuel feed pipe from the fuel pump. Refer to Fuel Line Replacement - Chassis .

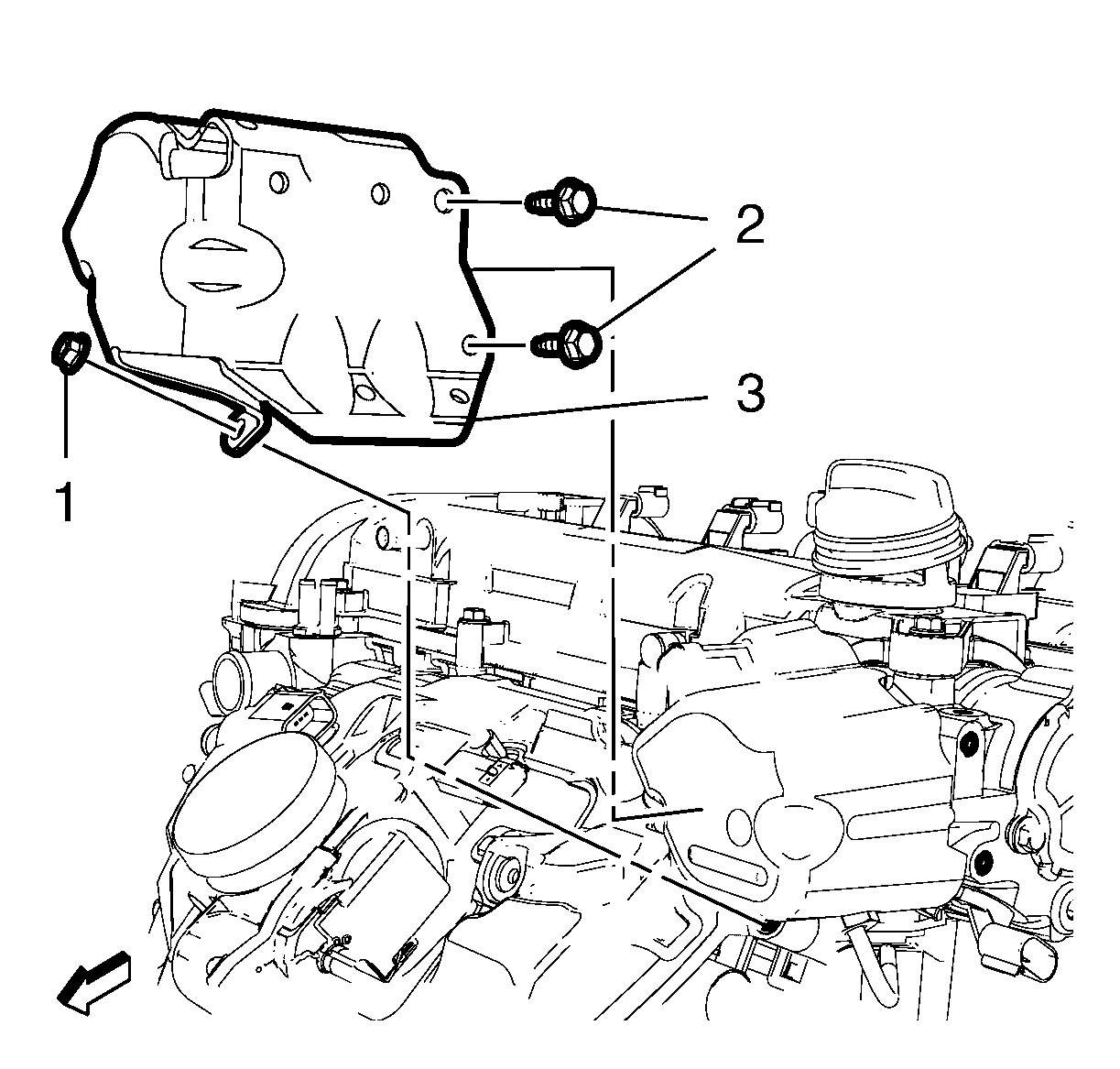

    2. Fig 1: Fuel Pump Cover & Fasteners
    GM2577149Courtesy of GENERAL MOTORS COMPANY
  2. Remove the fuel pump cover nut (1) and the 2 fuel pump cover bolts (2).
  3. Unclip the wiring harness from the fuel pump cover (3).
  4. Remove the fuel pump cover (3).

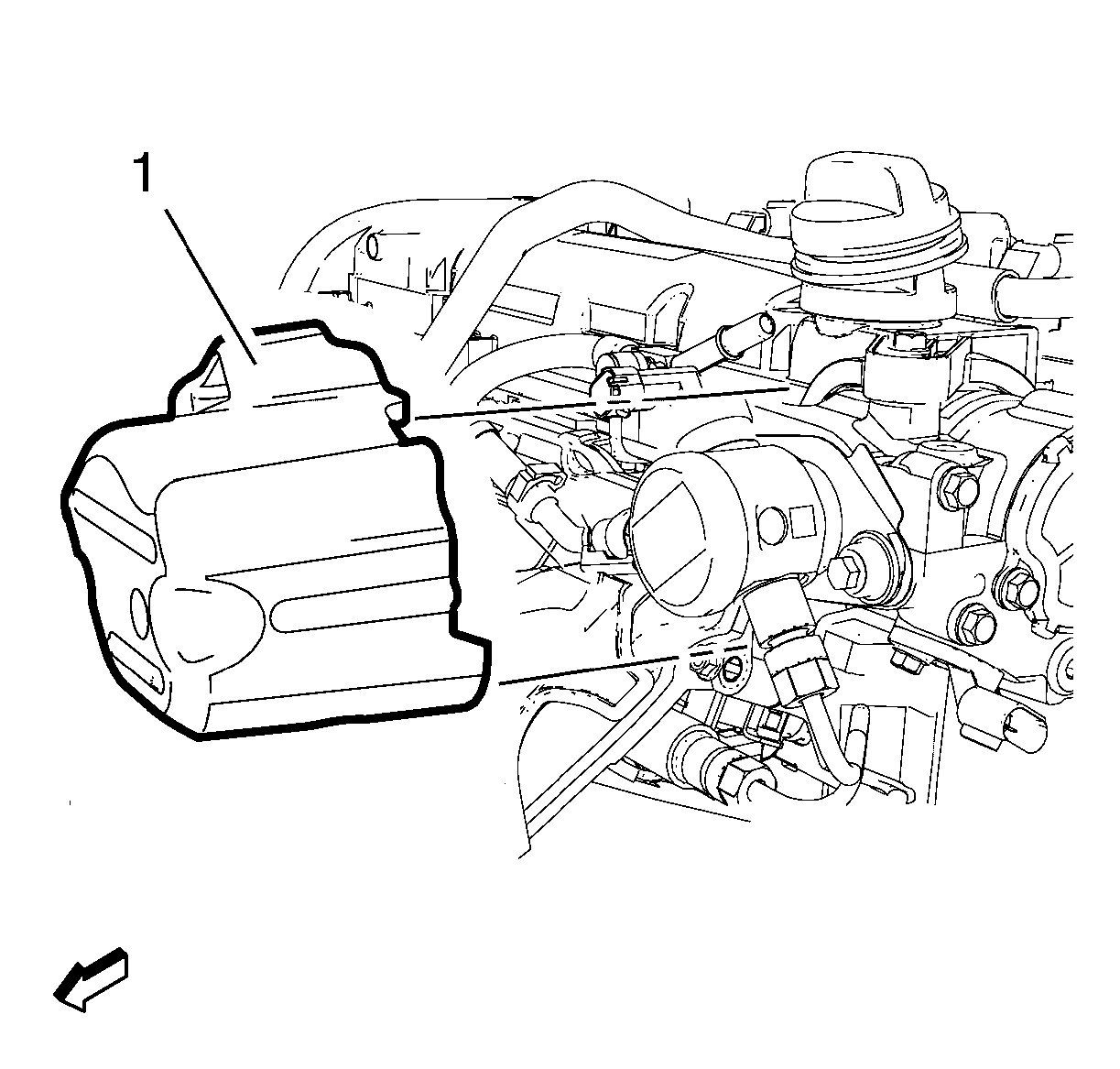

    5. Fig 2: Fuel Pump Insulator
    GM2577148Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel pump insulator (1).
  6. Remove the fuel feed intermediate pipe. Refer to Fuel Feed Intermediate Pipe Replacement .
    7. Fig 3: Fuel Pump, Seal Ring & Gasket
    GM2577147Courtesy of GENERAL MOTORS COMPANY
  7. Remove 2 the fuel pump bolts (4).
  8. Remove the fuel pump (3) with the seal ring (2) and the gasket (1).
    9. Fig 4: Valve Lifter Follower
    GM2577150Courtesy of GENERAL MOTORS COMPANY
  9. Remove the valve lifter follower (1).
