2012 Buick VeranoFACTORY OEM SERVICE PROCEDURE
Instrument Panel Components

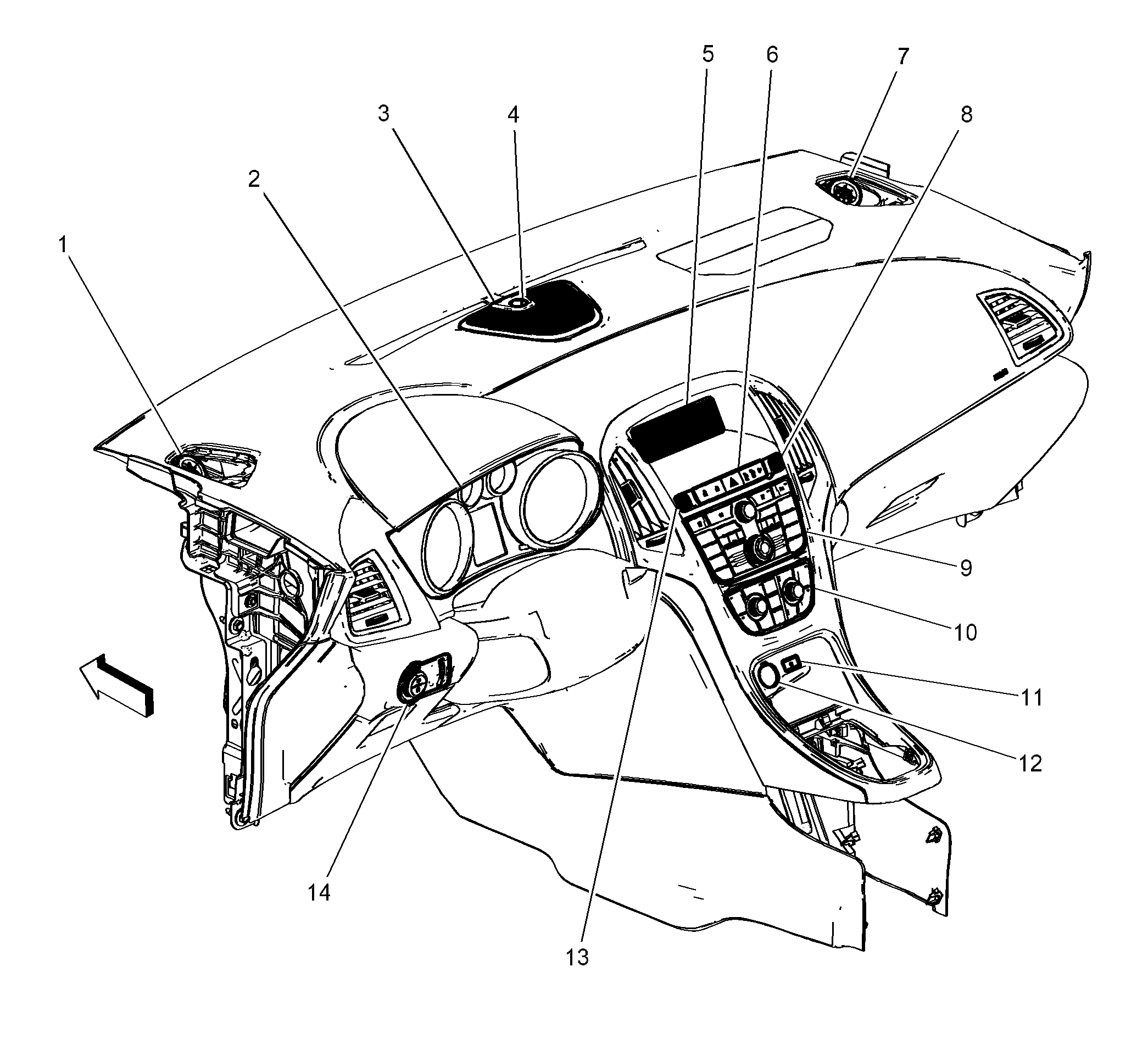

Instrument Panel Components
| Component Name | Callout |
|---|---|
| P19AH Speaker - Right Front Door | 1 |
| P16 Instrument Cluster | 2 |
| P19B Speaker - Center Instrument Panel | 3 |
| B10B Ambient Light/Sunload Sensor | 4 |
| P17 Info Display Module | 5 |
| S48A Multifunction Switch - Instrument Panel | 6 |
| P19V Speaker - Right Front Tweeter | 7 |
| S58B Rear Compartment Lid Unlatch Switch - Interior | 8 |
| A22 Radio Controls | 9 |
| A26 HVAC Controls | 10 |
| X83 | 11 |
| E32 Cigarette Lighter Receptacle | 12 |
| S38 Ignition Mode Switch (ATH) | 13 |
| S30 Headlamp Switch | 14 |
