Communication Interface Module Bracket Replacement

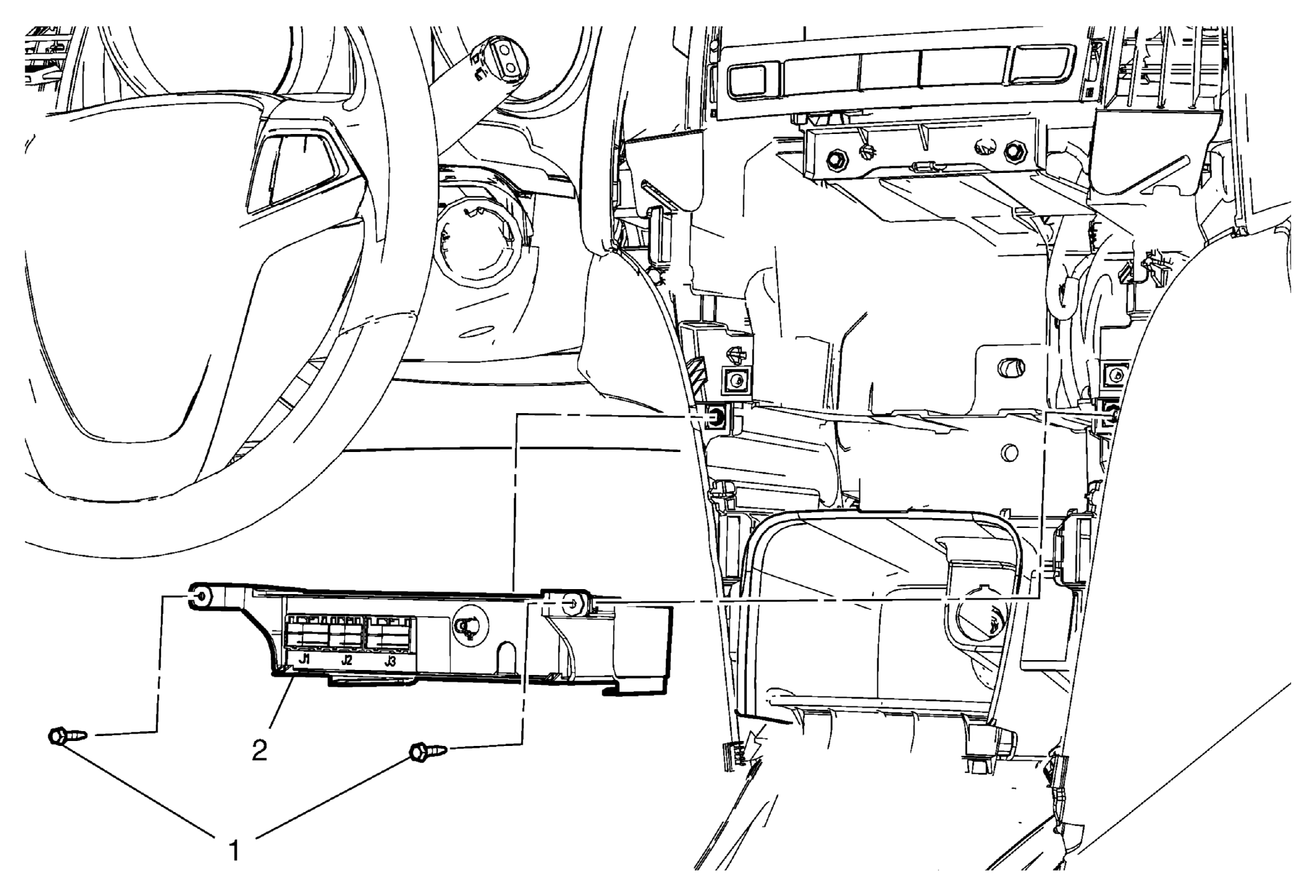

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the radio control assembly. Refer to Radio Control Assembly Replacement . |
|
| 1 | Communication Interface Module Bracket Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Communication Interface Module Bracket Procedure
|
