2011 Buick Lucerne CXFACTORY OEM SERVICE PROCEDURE
Installation Procedure

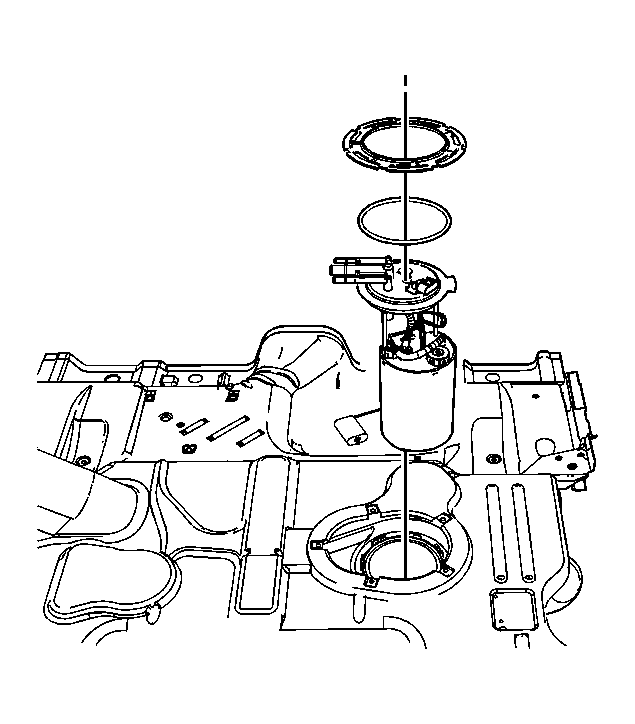

- Place a NEW fuel pump sender O-ring seal onto the fuel tank.
- Tilt the sender toward the rear of the fuel tank to allow the fuel level sensor float arm to clear the tank opening. Install the sender into the fuel tank.
- Lower the sender assembly into the tank.

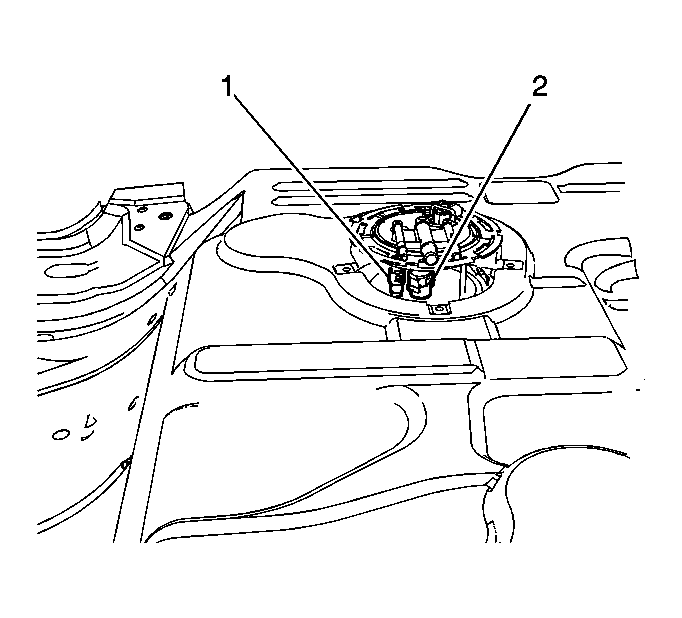

- Connect the internal vent line quick connect fittings (1 and 2) to the sender. Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the string securing the internal vent lines.
- Install the sender lock ring, and move it into position on the top of the sender.

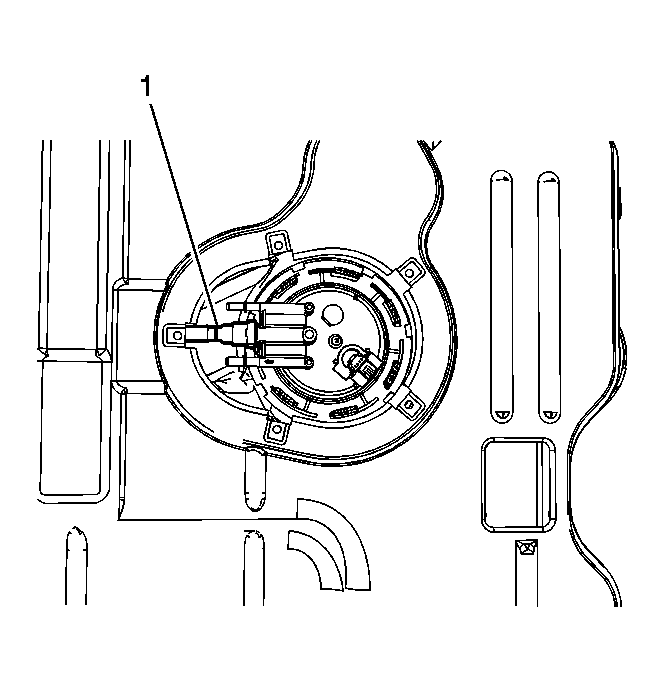

- Connect the vent line quick connect fitting (1) to the sender. Refer to Plastic Collar Quick Connect Fitting Service .

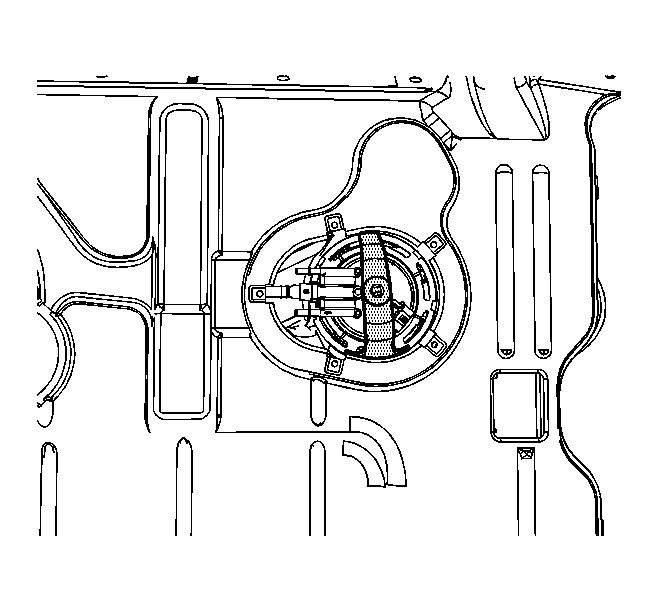

- Install the J 45722 to the lock ring.
NOTE:
The bucket must be tipped slightly during installation to avoid bending the fuel level sensor float arm.
