2011 Buick Lucerne CXFACTORY OEM SERVICE PROCEDURE
Installation Procedure

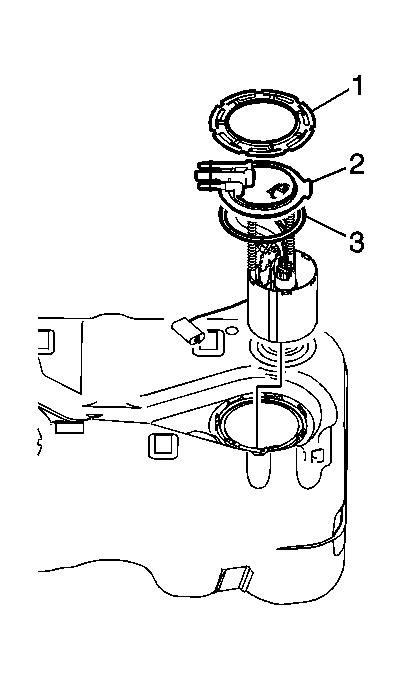

- Place a NEW fuel pump module O-ring seal (3) onto the fuel tank.
- Tilt the fuel sender so that the float arm can fit into the tank.
- Lower the fuel sender assembly (2) into the tank.
- Install the module lock ring (1), and move it into position on the top of the fuel sender.

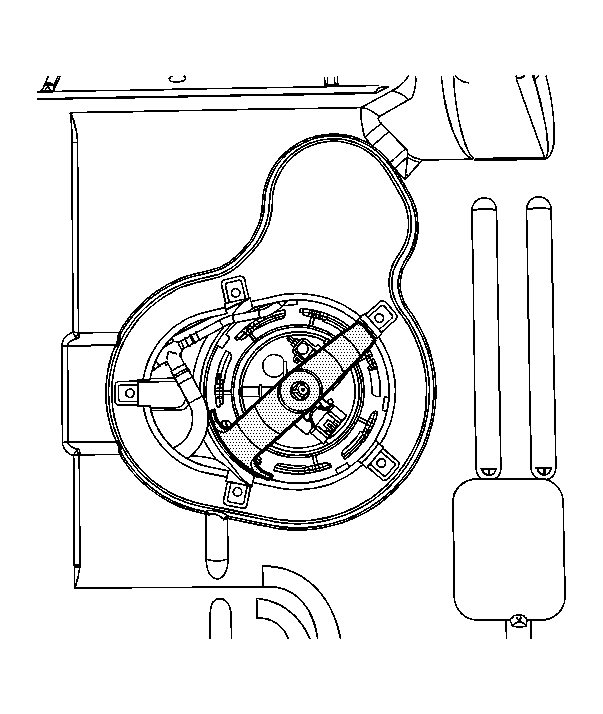

- Install the J 45722 to the lock ring.
NOTE:
The bucket must be tipped slightly during installation to avoid bending the fuel level sensor float arm.
