Auxiliary Blower Control Module Replacement

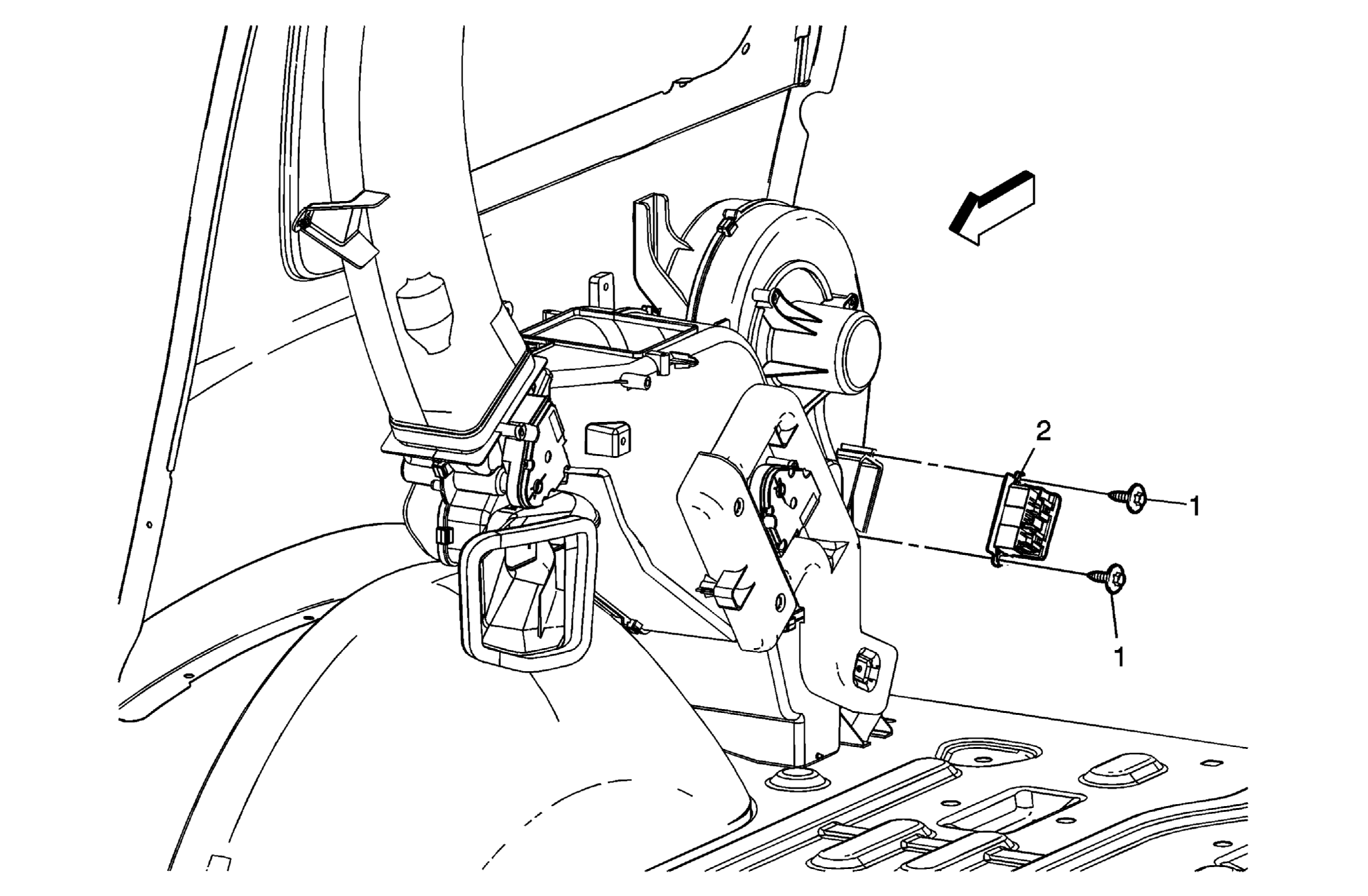

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Blower Motor Resistor Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Blower Motor Control Module |
