2008 Buick Enclave CX, AWDFACTORY OEM SERVICE PROCEDURE

Digital Radio Receiver Replacement

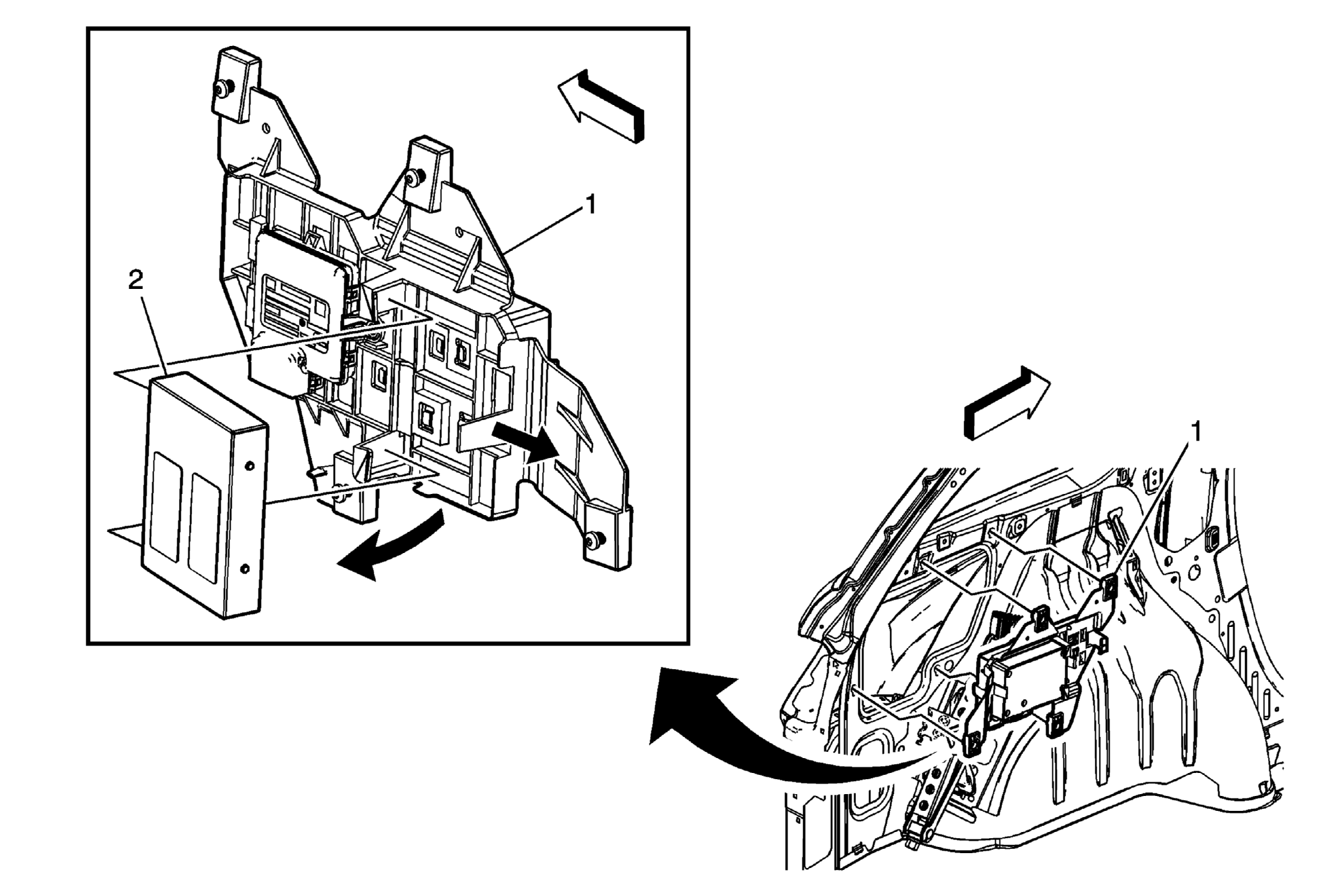

Fig 1: Identifying Digital Radio Receiver
GM1847590Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the left rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (Acadia/OUTLOOK with E61) or Rear Quarter Lower Trim Panel Replacement (Acadia/OUTLOOK without E61) or Rear Quarter Lower Trim Panel Replacement (Enclave with E61) or Rear Quarter Lower Trim Panel Replacement (Enclave without E61) .
  2. Remove the liftgate close actuator bracket (if equipped). Refer to Liftgate Close Actuator Bracket Replacement .
1 Communication Interface Module Bracket
Procedure:
Disconnect the electrical connectors.
2 Digital Radio Receiver
Procedure:
Refer to Control Module References for programming and set up information.
Tip:  Pull tab to release the receiver.
