2007 Buick Rainier AWD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Transmission Heat Shield Replacement
Transmission Heat Shield Replacement
Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.

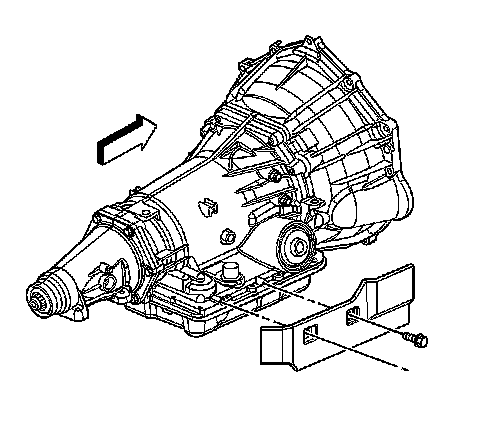

2. Remove the 2 bolts securing the transmission heat shield to the transmission.
3. Remove the transmission heat shield from the transmission.
Installation Procedure
1. Install the transmission heat shield to the transmission.
Notice: Refer to Fastener Notice.
2. Install the 2 bolts securing the transmission heat shield to the transmission.
Tighten the bolts to 17 N.m (13 lb ft).
3. Lower the vehicle.
