2007 Buick Rainier AWD L6-4.2LFACTORY OEM SERVICE PROCEDURE
6. 2-4 Servo Pin Length Check
2-4 Servo Pin Length Check
Tools Required
J 33037 2-4 Intermediate Band Apply Pin Gage

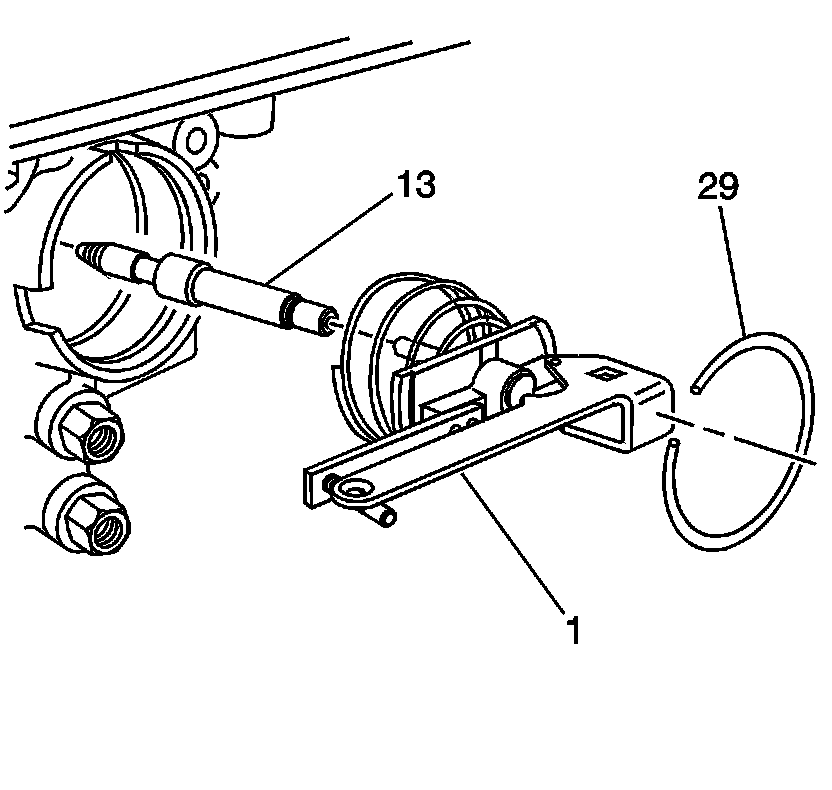

1. Install the band apply pin (13) and the J 33037.
2. Install the servo cover retaining ring (29) to secure the tool.

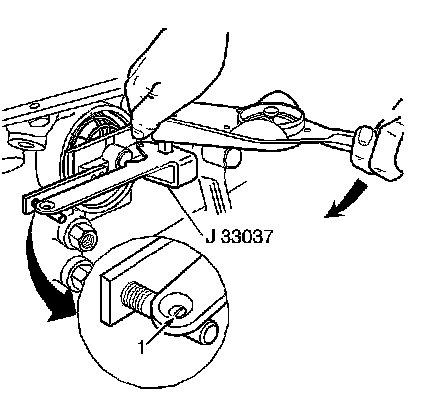

3. Apply 11 N.m (98 lb in) torque. If the white line appears in the gage slot (1), the pin length is correct.
4. If a new pin is needed, refer to 2-4 Servo Pin Selection in order to determine the correct pin length.
