2007 Buick Rainier AWD L6-4.2L

Crankshaft Position Sensor: Service and Repair

2007 Buick Rainier AWD L6-4.2LSECTION Service and Repair


Crankshaft Position Sensor Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.




2. Disconnect the crankshaft position (CKP) sensor harness connector.

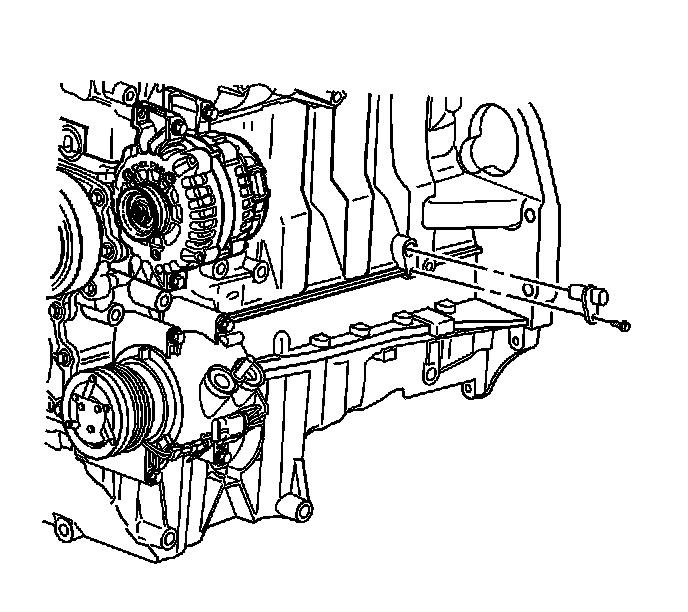

3. Remove the CKP sensor retaining bolt.
4. Remove the CKP sensor from the engine block.

Installation Procedure

Important: Inspect the sensor O-ring for the following conditions:

* Any wear
* Any cracks
* Any leakage

Replace the O-ring if necessary. Lubricate the new O-ring with engine oil before installation.

Notice: Refer to Fastener Notice.




1. Install the CKP sensor into the engine block.

Tighten the bolt to 10 N.m (89 lb in).

2. Install the CKP sensor retaining bolt.
3. Connect the CKP sensor harness connector.
4. Lower the vehicle.
5. Perform the Crankshaft Position System Variation Learn.
