2007 Buick Rainier AWD L6-4.2L
Vehicle Communication Interface Module (VCIM)
2007 Buick Rainier AWD L6-4.2LSECTION Vehicle Communication Interface Module (VCIM)
Entertainment/Communication Component Views

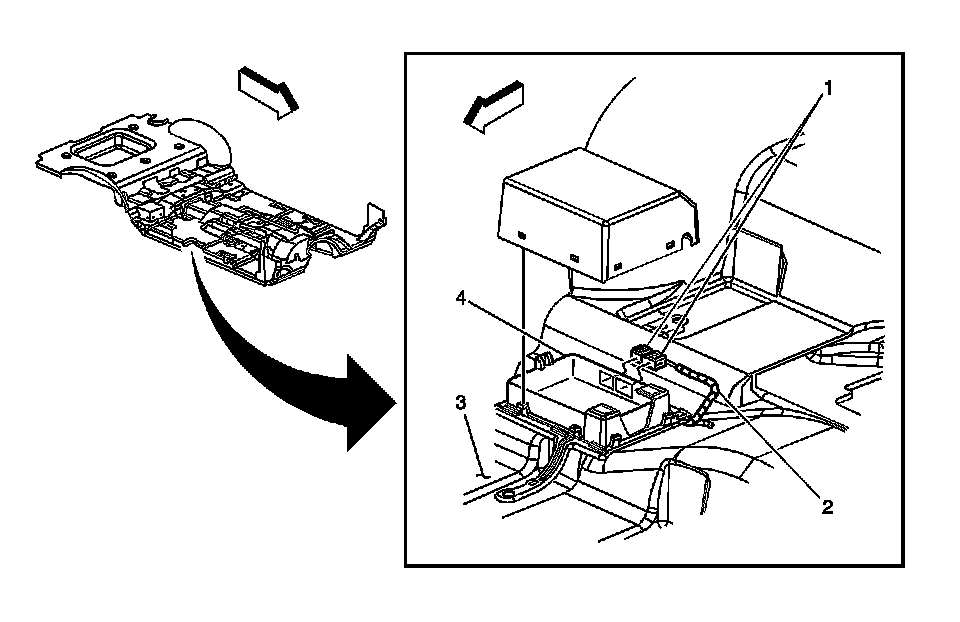

Vehicle Communication Interface Module (VCIM)
1 - Connectors
2 - Body Harness
3 - Rear Floor Panel
4 - Vehicle Communication Interface Module (VCIM)
