2007 Buick Lucerne CXFACTORY OEM SERVICE PROCEDURE
Shift Lock Control Component Views

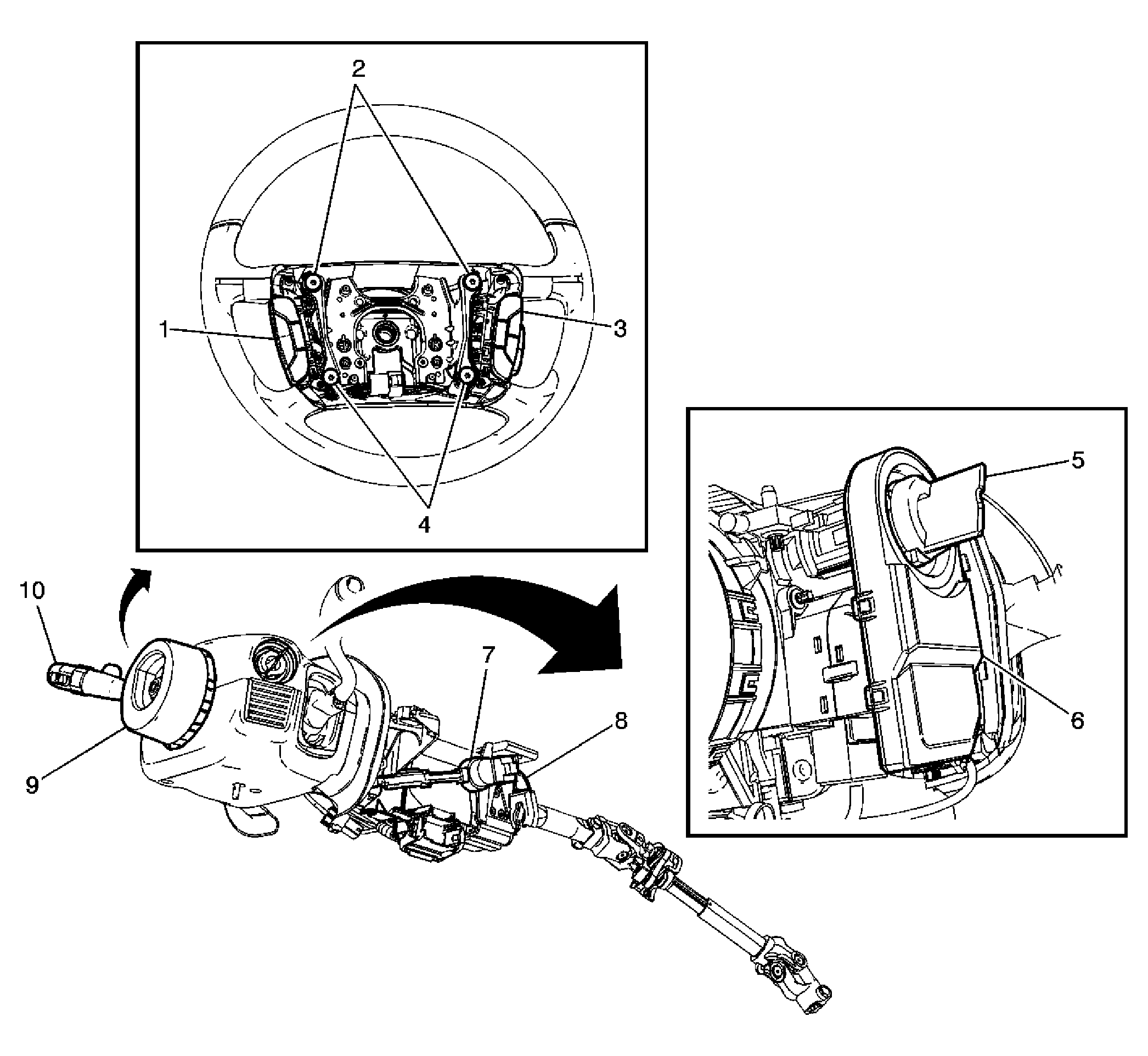

| Callout | Component Name |
|---|---|
| 1 | Steering Wheel Control Switch-Left |
| 2 | Horn Switches |
| 3 | Steering Wheel Control Switch-Right |
| 4 | Horn Switches |
| 5 | Ignition Switch |
| 6 | Theft Deterrent Module (TDM) |
| 7 | Ignition Lock Cylinder Solenoid (A51) |
| 8 | Steering Angle Sensor (JL4) |
| 9 | Inflatable Restraint Steering Wheel Module Coil |
| 10 | Turn Signal/Multifunction Switch |

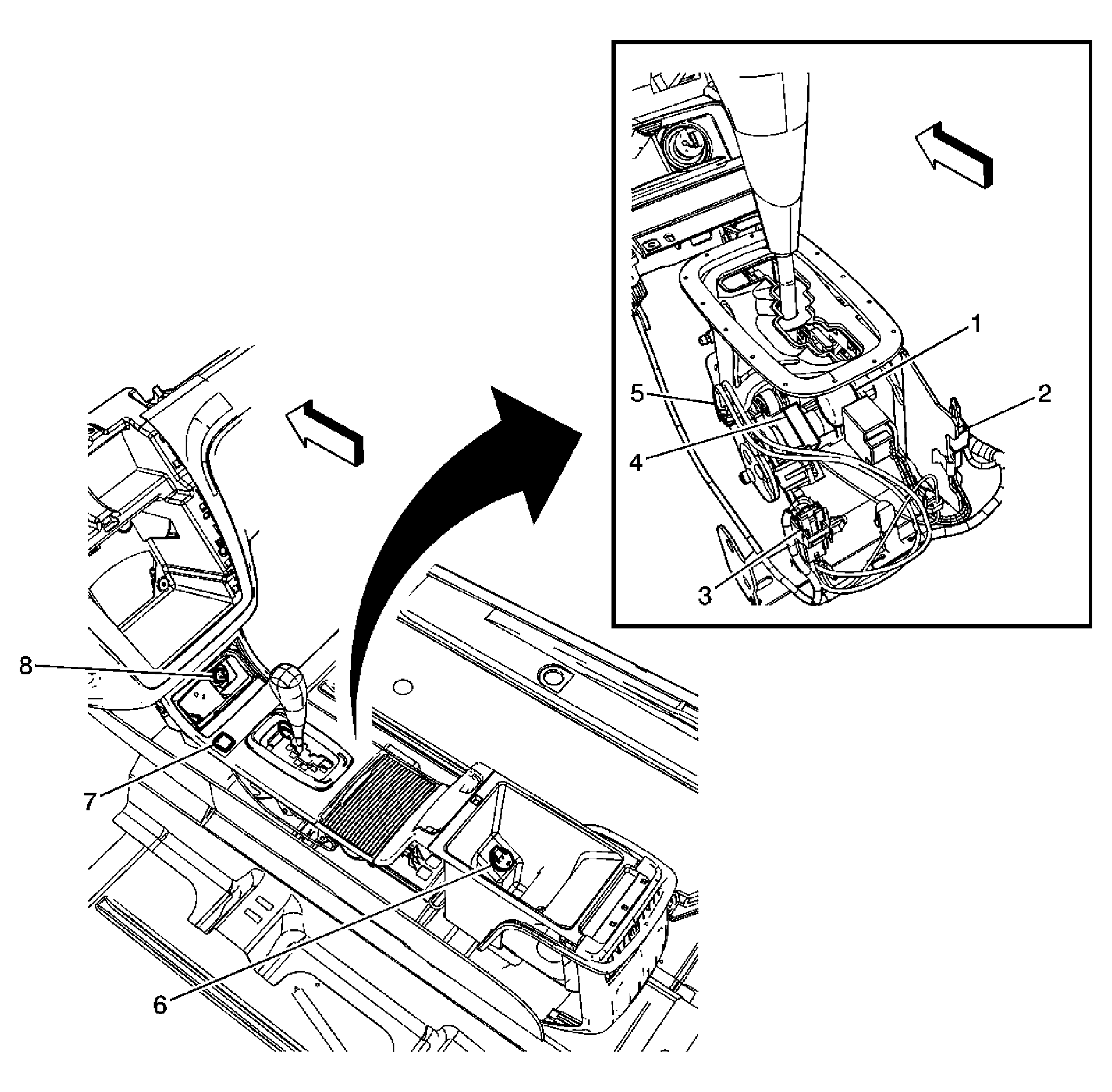

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid (AN3) |
| 2 | Reverse Lockout Solenoid C1 (A51) |
| 3 | Reverse Lockout Solenoid (A51) |
| 4 | Reverse Lockout Solenoid C2 (A51) |
| 5 | Shifter Background Lamp |
| 6 | Auxiliary Power Outlet (A51) |
| 7 | Traction Control Switch |
| 8 | Cigar Lighter (DT4 w/A51)/Auxiliary Power Outlet (A51) |
