2007 Buick LaCrosse V6-3.6LFACTORY OEM SERVICE PROCEDURE

Keyless Entry Module: Service and Repair



Remote Control Door Lock Receiver Replacement

Removal Procedure

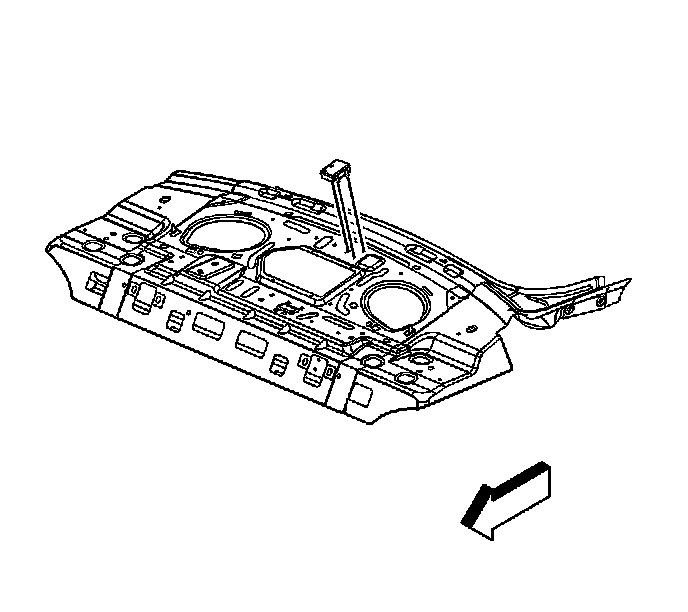

Factory service manual diagram



1. Remove the rear window shelf trim panel.
2. Disengage the outboard receiver retainers from the rear shelf.
3. Lift the receiver from the rear window shelf trim panel and disconnect the electrical connector.
4. Remove the receiver.

Installation Procedure

Factory service manual diagram



1. Connect the electrical connector to the receiver.
2. Install the receiver by positioning the inboard retainer to the slot in the rear window shelf trim panel. Press the outboard retainers into the rear window shelf trim panel openings.
3. Install the rear window shelf trim panel.
4. If a new remote control door lock receiver is being installed, program the transmitters. Refer to Programming and Relearning for programming and setup information.Programming and Relearning
