2007 Buick LaCrosse V6-3.6LFACTORY OEM SERVICE PROCEDURE
Object Detection Component Views
Object Detection Component Views

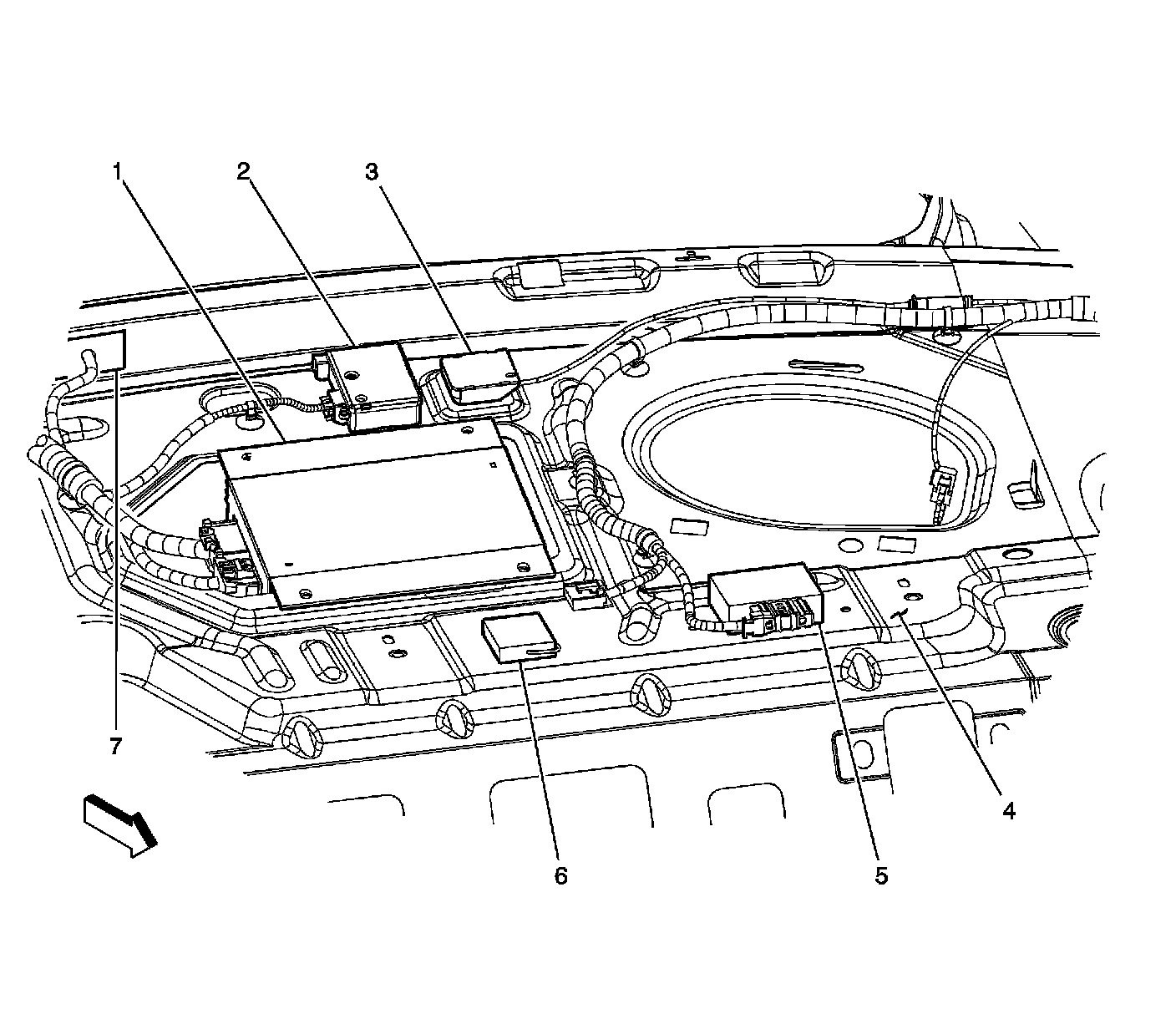

Rear of the Passenger Compartment
1 - Audio Amplifier
2 - Remote Control Door Lock Receiver (RCDLR)
3 - Navigation Antenna
4 - Rear Window Shelf
5 - Rear Parking Assist (RPA) Module
6 - Electronic Compass Module
7 - Rear Compartment Courtesy Lamp
