2007 Buick LaCrosse V6-3.6LFACTORY OEM SERVICE PROCEDURE
Theft Deterrent System Component Views
Theft Deterrent System Component Views
Front of the I/P

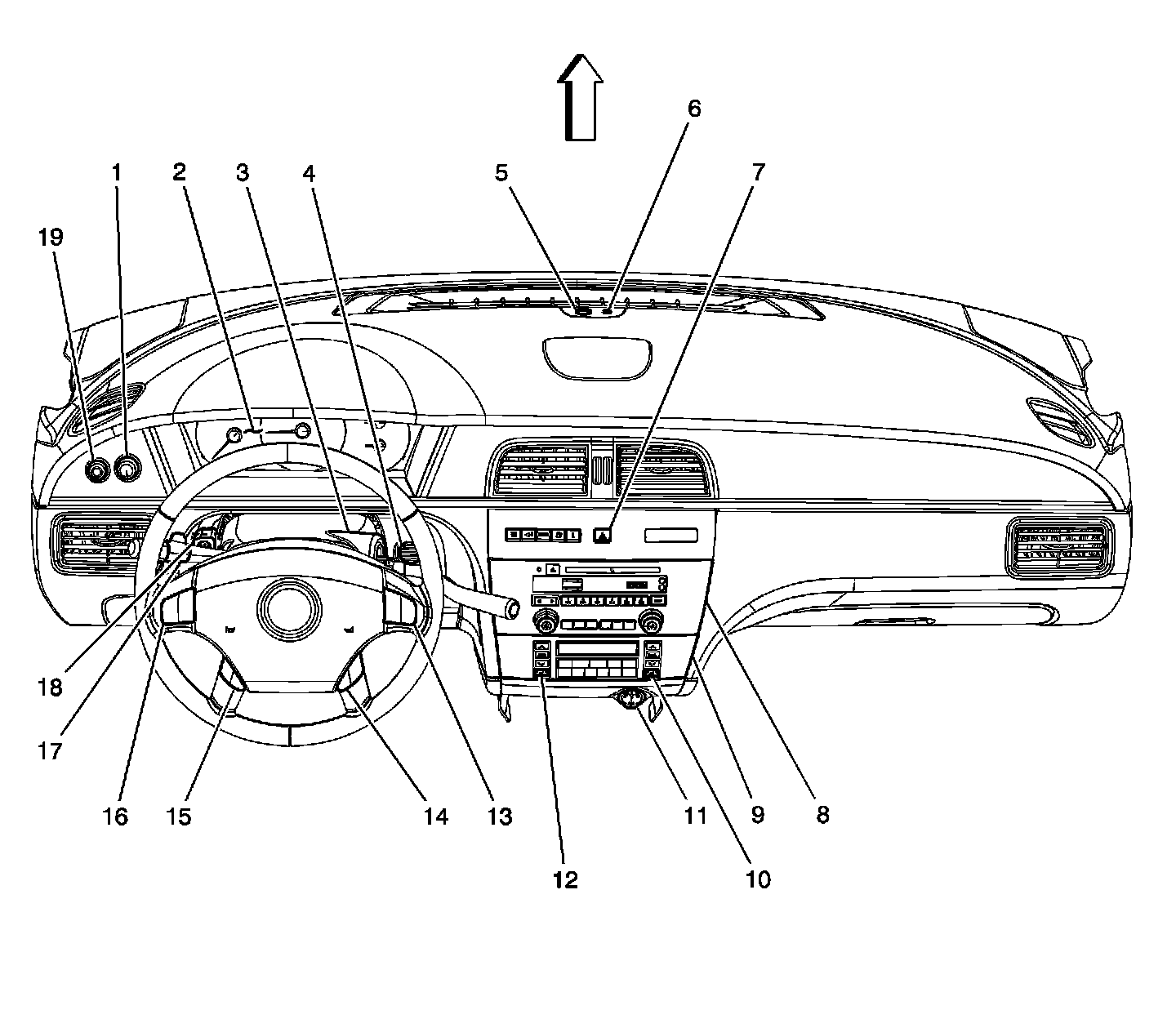

Front of the I/P:
1 - Lamp Switch Assembly - Fog Lamp
2 - Instrument Panel Cluster (IPC)
3 - Ignition Switch
4 - Air Temperature Sensor - Inside
5 - Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6 - Theft LED
7 - Driver Information Center (DIC)
8 - Radio
9 - HVAC Control Module
10 - Heated Seat Switch - Front Passenger
11 - Cigar Lighter
12 - Heated Seat Switch - Driver
13 - Steering Wheel Controls - Right
14 - Cruise Control Switch
15 - Voice Recorder / Cruise Switch Assembly
16 - Steering Wheel Controls - Left
17 - Turn Signal / Multifunction Switch
18 - I/P Dimmer Switch
19 - Lamp Switch Assembly - Interior Lamps
