2005 Buick Terraza CX, FWDFACTORY OEM SERVICE PROCEDURE

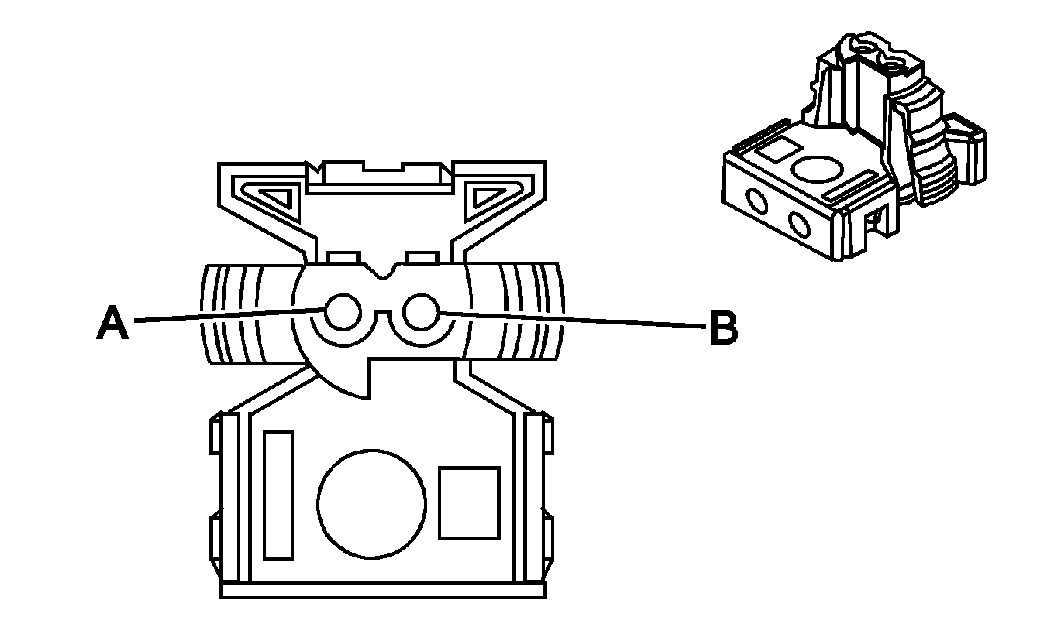

Inflatable Restraint I/P Module Connector End View C1
SIR Connector End Views
Connector Part Information
|
Terminal Part Information
|
Inflatable Restraint I/P Module C1
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | YE | 3025 | I/P Module Stage 1 - High Control |
| B | OG | 3024 | I/P Module Stage 1 - Low Control |
