2005 Buick Terraza CX, FWDFACTORY OEM SERVICE PROCEDURE

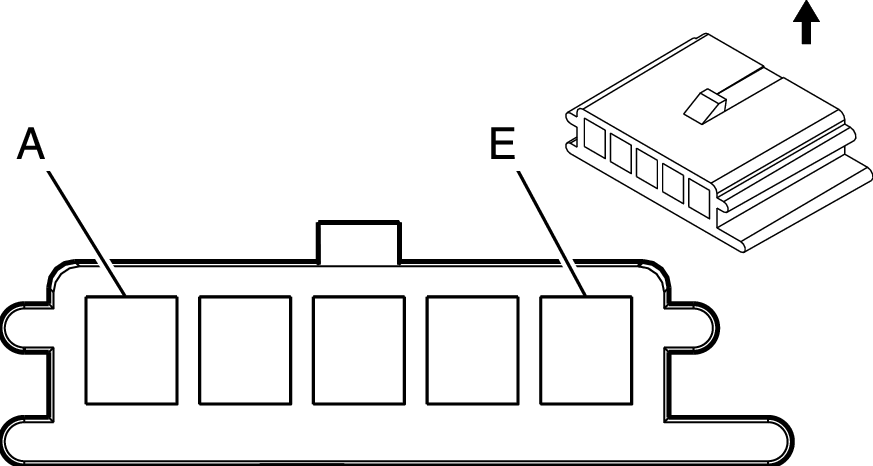

Turn Signal/Multifunction Switch Connector End View C2
Lighting Systems Connector End Views
Connector Part Information
|
Terminal Part Information
|
Turn Signal/Multifunction Switch C2
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | BN | 1356 | Flash To Pass Switch Signal |
| B-C | - | - | Not Used |
| D | BK/WH | 1551 | Ground |
| E | PU | 524 | Headlamp Dimmer Switch High Beam Signal |
