INSTRUMENT PANEL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the left sound insulator.

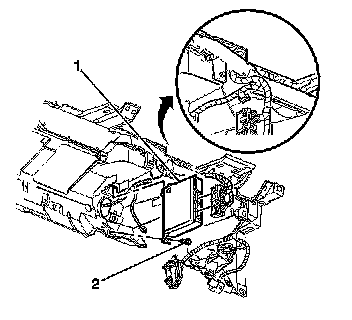

2. Remove the fastener (2) from the instrument panel module (IPM).
3. Rotate the IPM up and off of the instrument panel (I/P) retainer.
4. Disconnect the electrical connectors from the IPM (1).
5. Remove the IPM (1) from the vehicle.

INSTALLATION PROCEDURE

1. Install the IPM (1) to the vehicle.
2. Connect the electrical connectors to the IPM (1).
3. Install the IPM (1) to the IP retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the fastener.

Tighten fastener to 2 N.m (18 lb in).

5. Install the left closeout/insulator panel.
6. Program the instrument panel module. Refer to Body Control Module (BCM) Programming/RPO Configuration (IPM) Body Control Module (BCM) Programming/RPO Configuration (DIM) Body Control Module (BCM) Programming/RPO Configuration (RIM). Programming and Relearning
