2005 Buick LeSabre V6-3.8L VIN KFACTORY OEM SERVICE PROCEDURE
Body Control Module Replacement

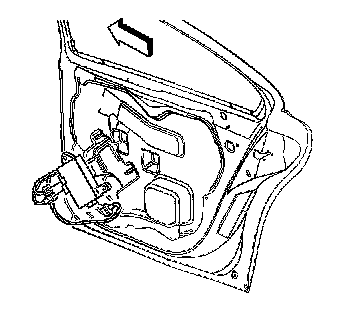

DOOR CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Disconnect the electrical connectors.
3. Remove the door control module fasteners.
4. Remove the door control module.
INSTALLATION PROCEDURE
1. Install the door control module.
2. Install the fasteners.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten the fasteners to 7 N.m (62 lb in).
3. Install the electrical connectors.
4. Install the door trim panel.
